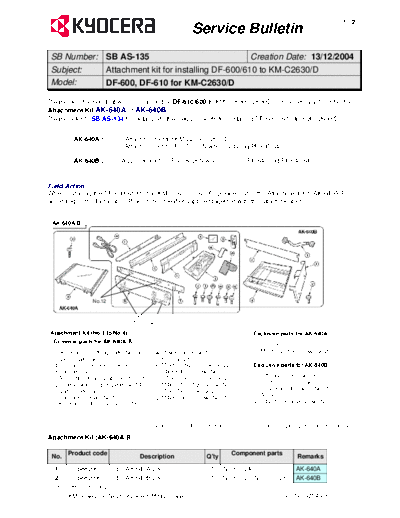

Image preview - the first page of the document
>> Download AS-135 documenatation <<
Text preview - extract from the document
1/2
Service Bulletin
SB Number: SB AS-135 Creation Date: 13/12/2004
Subject: Attachment kit for installing DF-600/610 to KM-C2630/D
Model: DF-600, DF-610 for KM-C2630/D
Please be informed that when installing the DF-610/600 to KM-C2630/C2630D, it is necessary to install the
Attachment Kit AK-640A or AK-640B.
Please refer to SB AS-134 for details of other requirements for installing DF-600 / 610 to KM-C2630/D.
AK-640A : - Attachment kit for KM-C2630/C2630D
- Attachment kit for FS-C8026N when installing PF-645/647!
AK-640B : Attachment kit for FS-C8026N when installing PF-640 and PF-645/647
Field Action
When installing the DF-600/610 to the KM-C2630/C2630D, please install the Attachment Kit (AK-640A/B)
according to the Installation Procedure or leaflet supplied together with the attachment kit.
AK-640A/B
No.12
No.7 No.11
No.6
Attachment Kit (No.1 to No.4) Exclusive parts for AK-640A
Common parts for AK-640A/B
a: Rail unit
b. Assembly mouthing plate (No.5 to 7) w: Power cable (No.19, 20) o: M4x10 binding screw (No.28)
c: Latch plate (No.8) x: Film (No.21)
d: Release hook handle (No.9) k: M4x14 S-tight screw (No.22) Exclusive parts for AK-640B
e: Stopper (No.10) l: M4x8 P-tight screw (No.23)
f: Assembly release plate (No.11 to 13) m: M4x6 binding screw (No.24) r: Left base cover (No.29)
g: Safety switch trigger plate (No.14) n: M4x20 TPS-tight screw (No.25) s: Front base cover (No.30)
h: Latch plate (No.15) p: M3x5 TP screw (No.26) t: Finisher junction wire (No.31)
i: Connecting plate (No.16) q: M4x8 S-tight screw (No.27) u: Assembly base
j: Assembly option box (No.17, 18) v: M4x6TP chrome screw (No.32)
* Rail unit (a) and Assembly base (u) are not handled as spare parts for field service.
Attachment Kit (AK-640A/B)
Product code Component parts
No. Description Q'ty Remarks
1 3B882060 SET AK-640A(230) 1 No.3 to 24 AK-640A
2 3B882090 SET AK-640B(230) 1 No.3 to 23, No. 25 ~ 28 AK-640B
continued on next page
KMIS Service Team, Kyocera Mita Europe 6579 / SB AS-135
Service Bulletin 2/2
Component parts of Attachment Kit (AK-640A/B)
No. Part No.
Description Q'ty Remarks
Common parts for AK-640A/B
3 3B803540 JUNCTION PLATE,MACHINE 2
4 3B803550 MOUNT,MACHINE 1
5 18526240 GROUND PLATE A,NOISE 2
6 3B803570 RAIL,RELEASE 1
7 3B803610 HANDLE,RELEASE 1
8 3B803560 STOPPER,JUNCTION PLATE 2
9 3B860510 RETAINER M,RELEASE 1
10 3B860520 HOOK M,RELEASE 2
11 34920190 GROUND PLATE,FIXING UNIT 2
12 3B860530 ACTUATION PLATE M,SAFETY SWITCH 1
13 3B860540 RAIL M,RELEASE 1
14 3B860550 JUNCTION PLATE M,RAIL 1
15 2BG60041 OPTION POWER SUPPLY ASS'Y (200) 1 NOTE 1.
16 2AR27800 POWER CORD(230) 1
This film is only used if punch unit is
17 3B860560 FILM,CONVEYING 2
installed
18 B3024140 BINDING TAP-TIGHT S SCREW M4X14 2
19 B4144080 TP TAP-TITE P SCREW(CHROMIUM) 5
For AK-640A... Q'ty: 2
20 B1304060 BINDING SCREW BVM4X6 (BLACK) *
For AK-640B... Q'ty: 8
TP TAP-TITE S SCREW M4X20
21 BAB54200 2
(TRIVALENT CHROMATING)
22 B4303050 TRIPLE SCREW M3X5 (BLACK) 2
23 B1A54080 BIND TAP-TITE S SCREW M4X08 1
Exclusive parts for AK-640A
24 B1304100 BINDING SCREW BVM4X10 (BLACK) 4
Exclusive parts for AK-640B
25 3B860690 LEFT COVER M,BASE 1
26 3B860680 FRONT COVER M,BASE 1
27 2BG60240 WIRE,FINISHER JUNCTION 1
28 B4104060 TRIPLE SCREW M4X6(CHROMIUM) 2
NOTE 1.: Only the power source PCB that is included in `OPTION BOX (J) ASS'Y' is supplied.
