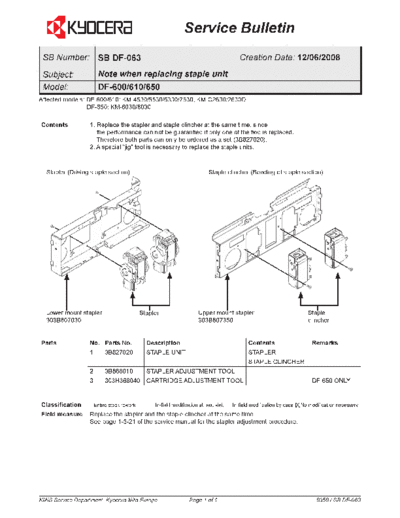

                                                               Service Bulletin
 SB Number: SB DF-063                                                                     Creation Date: 12/06/2008
 Subject:              Note when replacing staple unit
 Model:                DF-600/610/650
Affected models: DF-600/610: KM-4530/5530/6330/7530, KM-C2630/2630D
                 DF-650: KM-6030/8030

Contents          1. Replace the stapler and staple clincher at the same time, since
                     the performance can not be guarantied if only one of the two is replaced.
                     Therefore both parts can only be ordered as a set (3B827020).
                  2. A special "jig" tool is necessary to replace the staple units.



  Stapler (Driving staple section)                                          Staple clincher (Bending of staple section)




  Lower mount stapler                       Stapler                   Upper mount stapler                                   Staple
  303B807030                                                          303B807350                                            clincher


Parts             No. Parts No.               Description                                     Contents                        Remarks
                  1       3B827020            STAPLE UNIT                                     STAPLER
                                                                                              STAPLE CLINCHER
                  2       3B868010            STAPLER ADJUSTMENT TOOL
                  3       303H368040          CARTRIDGE ADJUSTMENT TOOL                                                       DF-650 ONLY


Classification        Entire stock rework        In-field modification at next visit   In-field modification by case   X No modification necessary
Field measure     Replace the stapler and the staple clincher at the same time.
                  See page 1-5-21 of the service manual for the stapler adjustment procedure.




KMIS Service Department, Kyocera Mita Europe                      Page  of                                                     8358 / SB DF-063
