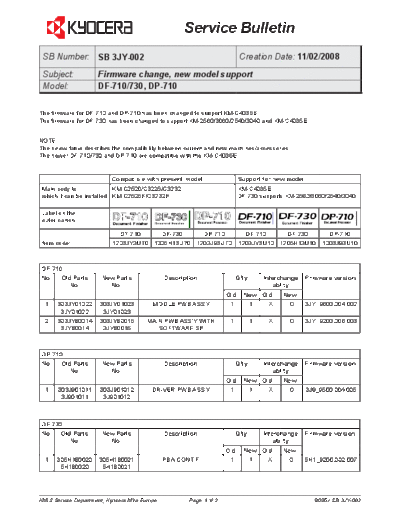

                                                        Service Bulletin
 SB Number: SB 3JY-002                                                      Creation Date: 11/02/2008
 Subject:            Firmware change, new model support
 Model:              DF-710/730, DP-710


The firmware for DF-710 and DP-710 has been changed to support KM-C4035E.
The firmware for DF-730 has been changed to support KM-2560/3060/2540/3040 and KM-C4035E.


NOTE:
The below table describes the compatibility between current and new machines/accessories.
The newer DF-710/730 and DP-710 are compatible with the KM-C4035E.


                           Compatible with present model                    Support for new model
 Main body to              KM-C2520/C3225/C3232                             KM-C4035E
 which it can be installed KM-C2525E/C3232E                                 DF 730 supports KM-2560/3060/2540/3040.

 Label on the
 outer carton

                              DF-710           DF-730        DP-710           DF-710         DF-730         DP-710
 Item code:                1203JY3UT0 1205H13UT0 1203J93UT0                 1203JY3U10 1205H13U10        1203J93U10



 DF-710
 No.    Old Parts      New Parts               Description                 Q'ty       Interchange   Firmware version.
           No.           No.                                                              ablity
                                                                      Old     New Old       New
  1    303JY01022     303JY01023         MIDDLE PWB ASS'Y              1          1    X      O     3JY_9600.004.002
        3JY01022       3JY01023
  2    303JY80014     303JY80015        MAIN PWB ASS'Y WITH            1          1    X      O     3JY_9200.006.003
        3JY80014       3JY80015            SOFTWARE SP



 DP-710
 No.    Old Parts      New Parts               Description                 Q'ty       Interchange   Firmware version.
           No.           No.                                                              ablity
                                                                      Old     New Old       New
  1    303J901011     303J901012         DRIVER PWB ASS'Y              1          1    X      O     3J9_9500.004.005
        3J901011       3J901012



 DF-730
 No.    Old Parts      New Parts               Description                 Q'ty       Interchange   Firmware version.
           No.           No.                                                              ablity
                                                                      Old     New Old       New
  1    305H180020     305H180021               PBA-CONT-F              1          1    X      O     5H1_9200.002.007
        5H180020       5H180021




KMIS Service Department, Kyocera Mita Europe            Page  of 2                                     8095 / SB 3JY-002
                                                          Service Bulletin

         Affected machine serial numbers
 Model       Item code       Start serial number
 DF-710     1203JY0U10    PRA7508105 and higher
            1203JY3U10    PNP7502090 and higher
 DF-730     1205H10U10 URF7412474 and higher
                        PRK******1 and higher
            1205H13U10      UNN******1 and higher
                            PNX******1 and higher
 DP-710     1203J95J10    PVM7507511 and higher
            1203J90K10     PAQ7517537 and higher
            1203J93U10    PNN7503761 and higher



                                          Contents of changes in firmware
    Model     Item                                   Contents
 1 DF-710 Support for KM-C4035E.                     Changed the conveying speed.
   DF-730
   DP-710
 2 DF-710     The timing of paper holding solenoid   In order to reduce the sound of the paper holding lever hitting
              has been adjusted.                     the main tray, the operation timing of the paper holding solenoid
                                                     has been changed.
 3 DF-710     Method to prevent JAM 88               There is a possibility that JAM88 might occur when copying 3
              (Main tray eject JAM).                 sheets monochrome A4 copies with 2 staples continuously.
 4 DP-710 The paper feeding timing when using        When using the Auto select function, there is a possibility that
          the Auto select function has been          small sized originals are detected as large sized originals and
          changed.                                   the copy image is printed half on the large sized paper.




KMIS Service Department, Kyocera Mita Europe          Page 2 of 2                                     8095 / SB 3JY-002
