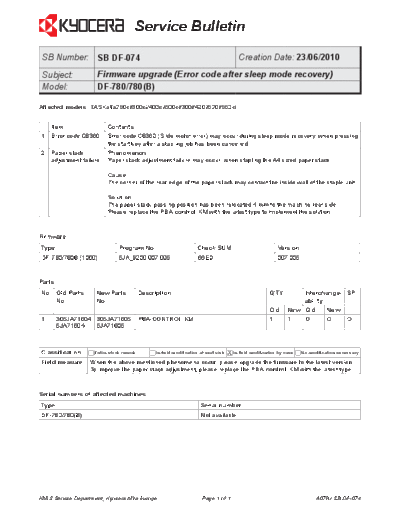

Image preview - the first page of the document



>> Download DF-074 documenatation <<

Text preview - extract from the document

                                     Service Bulletin
 SB Number: SB DF-074                                                             Creation Date: 23/06/2010
 Subject:            Firmware upgrade (Error code after sleep mode recovery)
 Model:              DF-780/780(B)

Affected models: TASKalfa250ci/300ci/400ci/500ci/300i/420i/520i/552ci


    Item                 Contents
1   Error code C8360     Error code C8360 (Slide motor error) may occur during sleep mode recovery, when pressing
                         the start key after a stapling job has been cancelled.
2   Paper stack          Phenomenon
    adjustment failure   Paper stack adjustment failure may occur, when stapling the A4 sized paper stack.

                         Cause
                         The corner of the rear edge of the paper stack may contact the inside wall of the staple unit.

                         Solution
                         The paper stack passing position has been relocated 4 mm to the machine rear side.
                         Please replace the PBA-control-KM with the latest type to implement the solution.



Firmware
Type                          Program No.                       Check SUM                          Version
DF-780/780B (1000)            5JA_9200.007.005                  66ED                               007.005


Parts
No. Old Parts        New Parts        Description                                              Q'TY           Interchange- SP
    No.              No.                                                                                      ability
                                                                                               Old     New Old          New
1       305JA71604 305JA71605         PBA-CONTROL-KM                                           1       1      O         O        O
        5JA71604   5JA71605



Classification     Entire stock rework   In-field modification at next visit X In-field modification by case No modification necessary
Field measure     When the above mentioned phenomena occur, please upgrade the firmware to the latest version.
                  To improve the paper stack adjustment, please replace the PBA-control-KM with the latest type.



Serial numbers of affected machines
Type                                                             Serial number
DF-780/780(B)                                                    Not available




KMIS Service Department, Kyocera Mita Europe                      Page  of                                         A078 / SB DF-074
