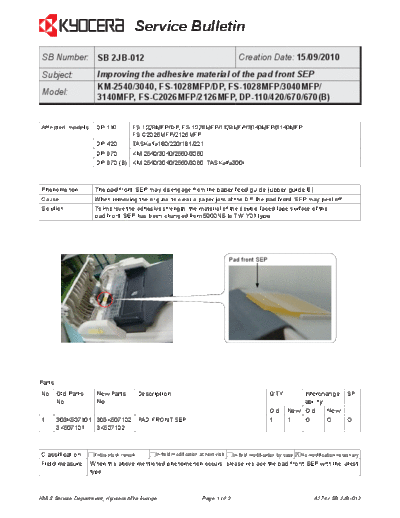

Image preview - the first page of the document
>> Download 2JB-012 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB 2JB-012 Creation Date: 15/09/2010
Subject: Improving the adhesive material of the pad front SEP
KM-2540/3040, FS-1028MFP/DP, FS-1028MFP/3040MFP/
Model:
3140MFP, FS-C2026MFP/2126MFP, DP-110/420/670/670(B)
Affected models: DP-110 FS-1028MFP/DP, FS-1028MFP/1128MFP/3040MFP/3140MFP,
FS-C2026MFP/2126MFP
DP-420 TASKalfa180/220/181/221
DP-670 KM-2540/3040/2560/3060
DP-670 (B) KM-2540/3040/2560/3060, TASKalfa300i
Phenomenon The pad front SEP may disengage from the paper feed guide (upper guide B).
Cause When removing the original to clear a paper jam at the DP, the pad front SEP may peel off.
Solution To improve the adhesive strength, the material of the double faced tape surface of the
pad front SEP has been changed from 5000NS to TW-Y01 type.
Pad front SEP
Parts
No. Old Parts New Parts Description Q'TY Interchange- SP
No. No. ability
Old New Old New
1 303K507101 303K507102 PAD FRONT SEP 1 1 O O O
3K507101 3K507102
Classification Entire stock rework In-field modification at next visit X No modification necessary
In-field modification by case
Field measure When the above mentioned phenomenon occurs, please replace the pad front SEP with the latest
type.
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 A274 / SB 2JB-012
Service Bulletin
Serial numbers of affected machines Serial numbers of affected units
Type Serial number Type Serial number
FS-1028MFP/DP, August 2010 production. DP-420/670 Not available.
FS-1028MFP/3040MFP/ DP-110/670(B) August 2010 production.
3140MFP, FS-C2026MFP/
2126MFP, KM-2540/3040
Machines produced after the above mentioned production Units produced after the above mentioned production
date, should not have the above mentioned date, should not have the above mentioned
phenomenon. phenomenon.
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 A274 / SB 2JB-012
