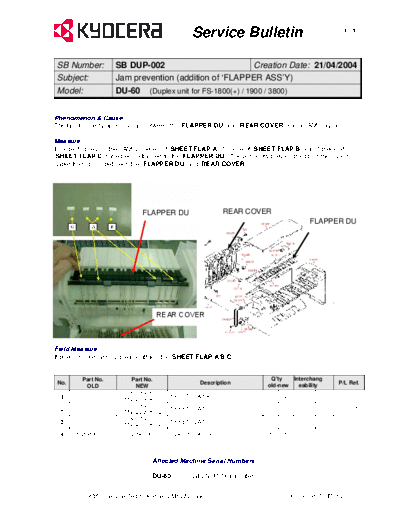

Image preview - the first page of the document



>> Download DUP-002 documenatation <<

Text preview - extract from the document

                                              Service Bulletin                                  1/1




 SB Number:           SB DUP-002                         Creation Date: 21/04/2004
 Subject:             Jam prevention (addition of `FLAPPER ASS'Y)
 Model:               DU-60     (Duplex unit for FS-1800(+) / 1900 / 3800)


Phenomenon & Cause
The tip of curled paper may go between the `FLAPPER DU' and `REAR COVER' and a JAM may occur.

Measure
In order to prevent the JAM, 2 pieces of `SHEET FLAP A', 1 piece of `SHEET FLAP B' and 1 piece of
`SHEET FLAP C' have been attached to the `FLAPPER DU'. These sheets prevent the tip of the curled
paper from going between the `FLAPPER DU' and `REAR COVER'.




                              FLAPPER DU                 REAR COVER
                                                                                      FLAPPER DU




                                    REAR COVER



Field Measure
If phenomenon arises, please attach the `SHEET FLAP A/B/C'.


         Part No.          Part No.                                    Q'ty   Interchang
 No.                                             Description          old-new   eability       P/L Ref.
          OLD               NEW
                          3DS16010
  1       --------                      SHEET FLAP A                  0    2      O        O   03-030
                       (5MVS222CK001)
                          3DS16020
  2       --------                      SHEET FLAP B                  0    1      O        O   03-031
                       (5MVS222CK002)
                          3DS16030
  3       --------                      SHEET FLAP C                  0    1      O        O   03-032
                       (5MVS222CK003)
  4    5SNSP0013738      3DS68000       FLAPPER ASSY                  1    1      O        O   03-013



                                 Affected Machine Serial Numbers:

                                 DU-60:      GGE2534179 and later


           KMIS Service Team, Kyocera Mita Europe                              6128 / SB DUP-002
