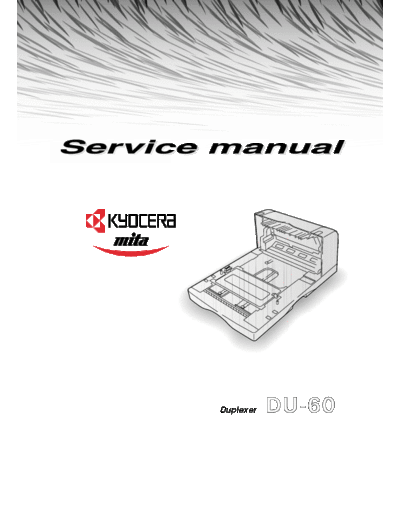

Image preview - the first page of the document



>> Download DU_60 documenatation <<

Text preview - extract from the document

Duplexer   DU-60
Conventions

Throughout this manual, the following conventions are used:

  Italic letters refer related chapters or sections or documentations.


            This symbol followed by WARNING denotes that the following paragraph(s) includes
            precautions which, if ignored, could result in personal injury, and/or irrevocable
            damage to the duplexer.
            When followed by CAUTION this symbol denotes that the following paragraph(s)
            include the precautions which, if ignored, could result in damage to the duplexer.




DU-60
About the chapters


The manual is comprised of the following chapters:


  Chapter 1:     Product Information

  Chapter 2:     Installation

  Chapter 3:     Maintenance

  Chapter 4:     Operation Overview

  Chapter 5:     Disassembly
                                                     Contents
  Chapter 6:     Troubleshooting

  Appendix A: Diagrams




                                                     Contents




                                                     Contents




                                                                DU-60
REVISION HISTORY




  Version        Date          Replaced Pages             Remarks
    1.00      2-Apr-2001              -




TO OBTAIN THE LATEST PRINTER DRIVERS AND UTILITIES, VISIT US AT OUR INTERNET HOME
PAGE: http://www.kyocera.com/w2k




DU-60
Chapter 1   Product Information
                                                Chapter 1 Contents
1-1 Specifications ................................................................................................................................... 1-3
1-2 Names of parts ................................................................................................................................. 1-4
1-1 Specifications



                          Table 1-1-1 Specifications

        Item                                       Description
 Compatible printer         Kyocera Mita Page Printers
                            FS-1800/1800N and FS-3800/3800N
 Loadable paper sizes       Legal size and A5 to A4/letter universal cassette
                            14.8 to 21.0 cm
