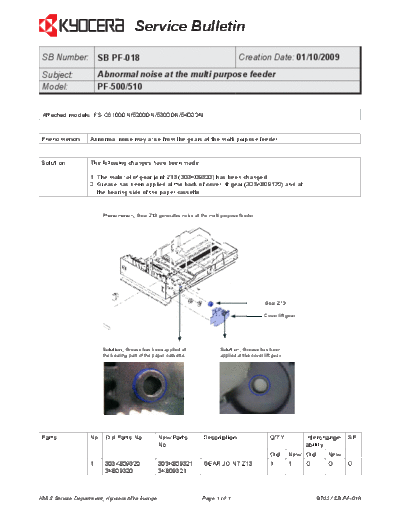

Image preview - the first page of the document



>> Download PF-018 documenatation <<

Text preview - extract from the document

                                     Service Bulletin
 SB Number: SB PF-018                                                            Creation Date: 01/10/2009
 Subject:             Abnormal noise at the multi purpose feeder
 Model:               PF-500/510


 Affected models: FS-C5100DN/5200DN/5300DN/5400DN


Phenomenon        Abnormal noise may arise from the gears at the multi purpose feeder.


Solution          The following changes have been made:

                  1. The material of gear joint Z13 (303K09320) has been changed.
                  2. Grease has been applied at the back of cover lift gear (303K809120) and at
                     the bearing side of the paper cassette.


                       Phenomenon; Gear Z13 generates noise at the multi purpose feeder




                                                                                              Gear Z13

                                                                                              Cover lift gear




                       Solution; Grease has been applied at             Solution; Grease has been
                       the bearing part of the paper cassette.          applied at the cover lift gear.




Parts             No. Old Parts No.              New Parts       Description                     Q'TY           Interchange- SP
                                                 No.                                                            ability
                                                                                                 Old      New Old       New
                  1     303K809320               303K809321      GEAR JOINT Z13                  1        1     O       O      O
                        3K809320                 3K809321



KMIS Service Department, Kyocera Mita Europe                     Page 1 of 1                                        8702 / SB PF-018
