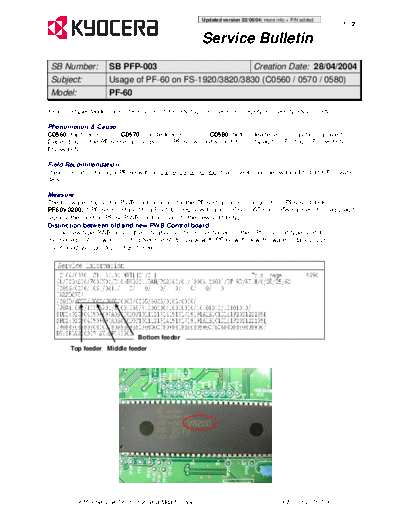

PFP-003up


>> Download PFP-003up documenatation <<

Text preview - extract from the document
                                                      Updated version 02/06/04: more info + P/N added.
                                                                                                            1/2

                                                      Service Bulletin
 SB Number:          SB PFP-003                        Creation Date: 28/04/2004
 Subject:            Usage of PF-60 on FS-1920/3820/3830 (C0560 / 0570 / 0580)
 Model:              PF-60

PF-60 = Paper feeder for FS-1800(+), FS-1900, FS-1920, FS-3800, FS-3820N, FS-3830N, FS-C5016N

Phenomenon & Cause
C0560 (top feeder error), C0570 (middle feeder error) or C0580 (bottom feeder error) may be displayed.
Depending on the PF-60 serial number, the PF-60 will not work if it is installed to a FS-1920, FS-3820(N) or
FS-3830(N).

Field Recommendation
Please avoid installing a PF-60 with an earlier serial number than mentioned below to a FS-1920, FS-3820 /
3830!

Measure
The firmware chip on the PWB control board for the PF-60 has been changed from PF60V0100 to
PF60V0200. If PF-60 is installed to a FS-1920/3820/3830 and C0560 / 0570 or C0580 arises, it is required to
replace the existing PF-60 PWB control board to the new V0200 type.
Distinction between old and new PWB Control board:
On the new type PWB board, the indication V0200 is mentioned on the CPU. (on old type, V0100 is
mentioned.) (Also, when printing Service Status page with PF-60 with new firmware installed, `0200' is
mentioned as indicated in figs. below.)




                               Bottom feeder
        Top feeder Middle feeder




          KMIS Service Team, Kyocera Mita Europe                                        6418 / SB PFP-003
                                                Updated version 02/06/04: more info + P/N added.
                                                                                                        2/2

                                                Service Bulletin
         Part No.            Part No.                                             Q'ty         Interchange
No.                                                 Description
          OLD                 NEW                                               old-new           ability
      5SNSP0013707         303DD01011
1                                              PWB CONTROL                      1        1         x    O
       (3DD01010)          (3DD01011)


                       Affected Machine Serial Numbers:

                       PF-60:    GGD3X42096 and later




      KMIS Service Team, Kyocera Mita Europe                                        6418 / SB PFP-003
