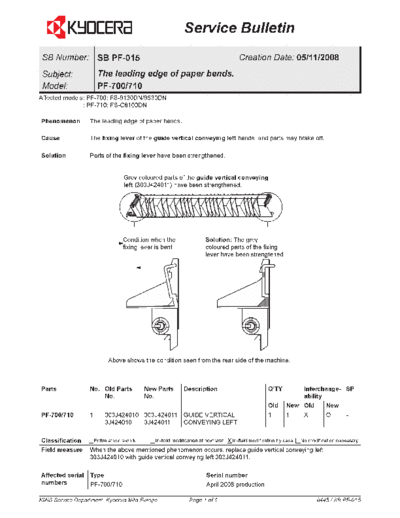

                                                             Service Bulletin
 SB Number: SB PF-015                                                                Creation Date: 05/11/2008
 Subject:              The leading edge of paper bends.
 Model:                PF-700/710
Affected models: PF-700: FS-9130DN/9530DN
               : PF-710: FS-C8100DN

Phenomenon        The leading edge of paper bends.

Cause             The fixing lever of the guide vertical conveying left bends, and parts may brake off.

Solution          Parts of the fixing lever have been strengthened.


                                   Grey coloured parts of the guide vertical conveying
                                   left (303J424011) have been strengthened.




                                   Condition when the                   Solution: The grey
                                   fixing lever is bent                 coloured parts of the fixing
                                                                        lever have been strengtened




                            Above shows the condition seen from the rear side of the machine.



Parts             No. Old Parts             New Parts        Description                         Q'TY       Interchange- SP
                      No.                   No.                                                             ability
                                                                                                 Old    New Old      New
PF-700/710        1       303J424010 303J424011              GUIDE VERTICAL                      1      1   X        O      -
                          3J424010   3J424011                CONVEYING LEFT

Classification        Entire stock rework                           X In-field modification by case No modification necessary
                                               In-field modification at next visit
Field measure     When the above mentioned phenomenon occurs, replace guide vertical conveying left
                  303J424010 with guide vertical conveying left 303J424011.

Affected serial    Type                                                  Serial number
numbers            PF-700/710                                            April 2008 production

KMIS Service Department, Kyocera Mita Europe                    Page 1 of 1                                       8445 / SB PF-015
