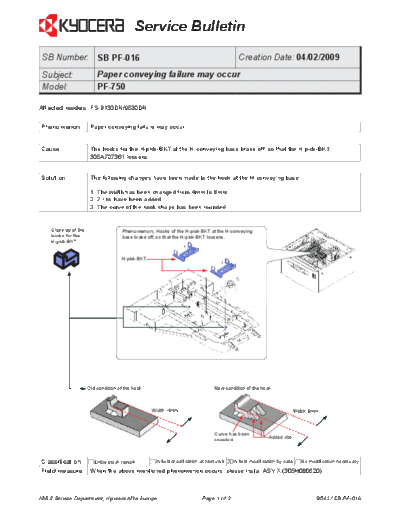

Image preview - the first page of the document
>> Download PF-016 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB PF-016 Creation Date: 04/02/2009
Subject: Paper conveying failure may occur
Model: PF-750
Affected models: FS-9130DN/9530DN
Phenomenon Paper conveying failure may occur.
Cause The hooks for the H-pick-BKT at the H-conveying base brake off, so that the H-pick-BKT
305A707361 loosens.
Solution The following changes have been made to the hook at the H-conveying base:
1. The width has been changed from 4mm to 8mm.
2. 2 ribs have been added.
3. The curve of the hook shape has been rounded.
Close up of the Phenomenon; Hooks of the H-pick-BKT at the H-conveying
hooks for the base brake off, so that the H-pick-BKT loosens.
H-pick-BKT
H-pick-BKT
Old condition of the hook New condition of the hook
Width: 4mm Width: 8mm
Curve has been
rounded Added ribs
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs, please install ASY-X (305H080620).
KMIS Service Department, Kyocera Mita Europe Page 1 of 2 8543 / SB PF-016
Service Bulletin
Parts No. Old Parts New Parts Description Q'TY Interchange- SP
No. No. ability
Old New Old New
1 305A707111 305A707112 H-CONVEYING BASE 1 1 O O -
5A707111 5A707112
2 ----------- 305H080620 ASY-X (Parts set for the - 1 - O
5H080620 machines in the field)
Affected serial Type Serial number
numbers PF-750 8921975 and higher
KMIS Service Department, Kyocera Mita Europe Page 2 of 2 8543 / SB PF-016
