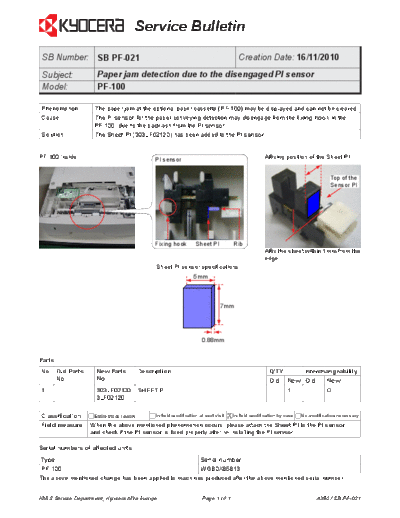

Image preview - the first page of the document



>> Download PF-021 documenatation <<

Text preview - extract from the document

                                         Service Bulletin
 SB Number: SB PF-021                                                                    Creation Date: 16/11/2010
 Subject:                Paper jam detection due to the disengaged PI sensor
 Model:                  PF-100

Phenomenon             The paper jam at the optional paper cassette (PF-100) may be displayed and can not be cleared.
Cause                  The PI sensor for the paper conveying detection may disengage from the fixing hook in the
                       PF-100, due to the backlash from the PI sensor.
Solution               The Sheet PI (303LF02120) has been added to the PI sensor.


PF-100 inside                                     PI sensor                                    Affixing position of the Sheet PI.


                                                                                                                        Top of the
                                                                                                                        Sensor PI




                                                  Fixing hook         Sheet PI          Rib
                                                                                               Affix the sheet within 1mm from the
                                                                                               edge.
                                                   Sheet PI sensor specifications
                                                                     5mm



                                                                                   7mm




                                                                         0.88mm


Parts
No. Old Parts           New Parts            Description                                        Q'TY          Interchangeability
    No.                 No.                                                                     Old    New Old         New
1       -----------     303LF02120           SHEET PI                                           -      1      -        O
                        3LF02120

Classification         Entire stock rework                                 X In-field modification by case No modification necessary
                                                  In-field modification at next visit
Field measure         When the above mentioned phenomenon occurs, please attach the Sheet PI to the PI sensor,
                      and check if the PI sensor is fixed properly after re-installing the PI sensor.

Serial numbers of affected units
Type                                                                     Serial number
 PF-100                                               WGB0X85813
The above mentioned change has been applied to machines produced after the above mentioned serial number.


KMIS Service Department, Kyocera Mita Europe                             Page 1 of 1                               A350 / SB PF-021
