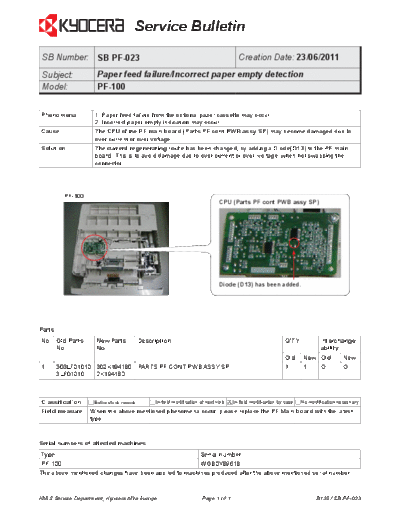

Image preview - the first page of the document



>> Download PF-023 documenatation <<

Text preview - extract from the document

                                      Service Bulletin
 SB Number: SB PF-023                                                             Creation Date: 23/06/2011
 Subject:             Paper feed failure/Incorrect paper empty detection
 Model:               PF-100


Phenomena            1. Paper feed failure from the optional paper cassette may occur.
                     2. Incorrect paper empty indication may occur.
Cause                The CPU of the PF main board (Parts PF cont PWB assy SP) may become damaged due to
                     over-current or over voltage.
Solution             The current regenerating route has been changed, by adding a Diode(D13) to the PF main
                     board. This is to avoid damage due to over-current or over
