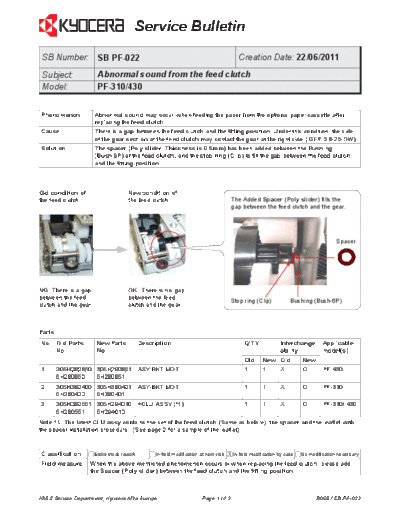

Image preview - the first page of the document
>> Download PF-022 documenatation <<
Text preview - extract from the document
Service Bulletin
SB Number: SB PF-022 Creation Date: 22/06/2011
Subject: Abnormal sound from the feed clutch
Model: PF-310/430
Phenomenon Abnormal sound may occur, when feeding the paper from the optional paper cassette after
replacing the feed clutch.
Cause There is a gap between the feed clutch and the fitting position. Under this condition, the side
of the gear section at the feed clutch may contact the gear at the right side. (GER-0.8-25-OW)
Solution The spacer (Poly slider: Thickness is 0.5mm) has been added between the Bushing
(Bush 6P) at the feed clutch, and the stop ring (Clip) to fill the gap between the feed clutch
and the fitting position.
Old condition of New condition of
the feed clutch the feed clutch The Added Spacer (Poly slider) fills the
gap between the feed clutch and the gear.
Spacer
NG: There is a gap OK: There is no gap
between the feed between the feed Stop ring (Clip) Bushing (Bush-6P)
clutch and the gear. clutch and the gear
Parts
No. Old Parts New Parts Description Q'TY Interchange- Applicable
No. No. ability model(s)
Old New Old New
1 305H280850 305H280851 ASY-BKT-MOT 1 1 X O PF-430
5H280850 5H280851
2 305H380400 305H380401 ASY-BKT-MOT 1 1 X O PF-310
5H380400 5H380401
3 305H280551 305H294010 +CLU-ASSY (*1) 1 1 X O PF-310/ 430
5H280551 5H294010
Note *1: The latest CLU-assy contains the set of the feed clutch (Same as before), the spacer and the leaflet with
the spacer installation procedure . (See page 2 for a sample of the leaflet)
Classification Entire stock rework X In-field modification by case No modification necessary
In-field modification at next visit
Field measure When the above mentioned phenomenon occurs or when replacing the feed clutch, please add
the Spacer (Poly slider) between the feed clutch and the fitting position.
KMIS Service Department, Kyocera Mita Europe Page of 2 B068 / SB PF-022
Service Bulletin
Bundled Leaflet
A
3 A
2
1
English
NOTICE
How to attach the spacer
Place spacer A between stop ring( 2) and axle holder (3) after replacing clutch (1).
