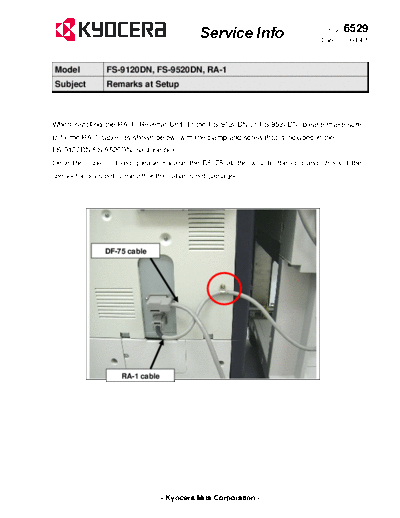

Image preview - the first page of the document



>> Download RA1_FS9120DN_9520DN_ATTENTI documenatation <<

Text preview - extract from the document

                                             Service Info                          Ref. No.
                                                                                   Date:
                                                                                              6529
                                                                                              2004.4.1



Model           FS-9120DN, FS-9520DN, RA-1
Subject         Remarks at Setup



When installing the RA-1 (Reverse Unit) to the FS-9120DN or FS-9520DN, please make sure
to fix the RA-1 cable (as shown below) with the clamp and screw that is included in the
FS-9120DN/FS-9520DN machine box.
Once the cable is fixed, please release the DF-75 all the way till the end and check if the
connector does not come off or the cable is not damaged.




                DF-75 cable




                     RA-1 cable




                                  - Kyocera Mita Corporation -
