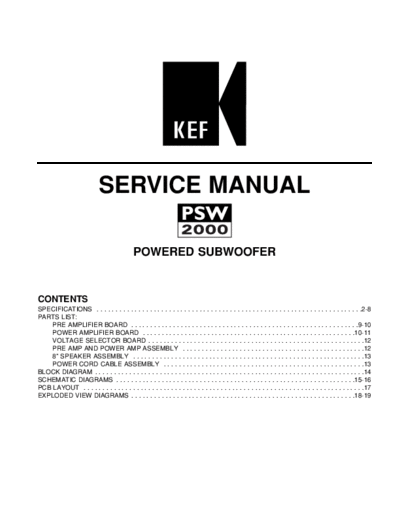

Image preview - the first page of the document
>> Download PSW-2000 documenatation <<
Text preview - extract from the document
SERVICE MANUAL
POWERED SUBWOOFER
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8
PARTS LIST:
PRE AMPLIFIER BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10
POWER AMPLIFIER BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
VOLTAGE SELECTOR BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PRE AMP AND POWER AMP ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8" SPEAKER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
POWER CORD CABLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
SCHEMATIC DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-16
PCB LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXPLODED VIEW DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
POWERED SUBWOOFER
SPECIFICATIONS
System Specifications
Frequency Response 70-20K Hz
Sensitivity 85+/-2dB
Power Handling 70W Max
Dimension (W x D x H) 198 x 130 x 150 mm
Weight 2.1kg
HF 12mm (0.5") tweeter
LF 100mm (4")
Crossover Frequency 3KHZ
Impedance 4 OHM
Woofer Specifications
Rated Impedance 3.8 ohms +/- 0.8 at 1V 500 Hz
Voice coil DCR 3 +/-0.15 ohm
Sweep Test Sine Wave 4V at 20-20K Hz
Resonant Frequency (Fo) 65 +/- 15 Hz
Sensitivity 85 dB/W/m
Rated Power Input 30W
Maximum Power Input 60W
Power Test 15W Music Max/Channel
30W RMS/Channel
(The rated power is verified by performing power handling test by feeding
rated output with "IEC268-5" for 8 hours)
