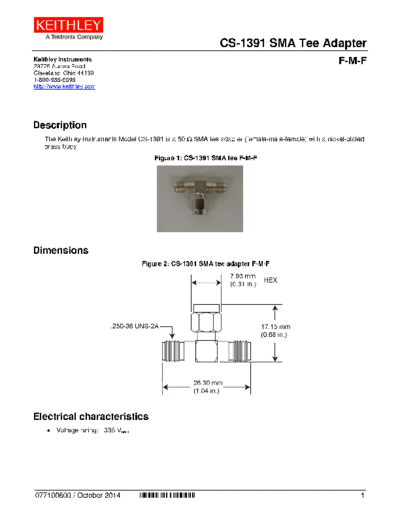

Image preview - the first page of the document
>> Download 077100600 (Oct 2014)(CS-1391) documenatation <<Text preview - extract from the document CS-1391 SMA Tee Adapter
Keithley Instruments
28775 Aurora Road
F-M-F
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Keithley Instruments Model CS-1391 is a 50 SMA tee adapter (female-male-female) with a nickel-plated
brass body.
Figure 1: CS-1391 SMA tee F-M-F
Dimensions
Figure 2: CS-1391 SMA tee adapter F-M-F
Electrical characteristics
