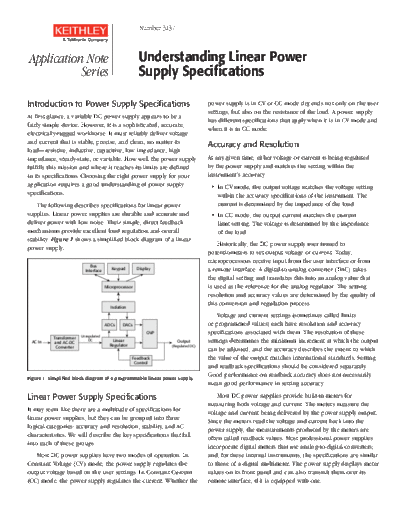

Image preview - the first page of the document



>> Download Ser2200LinPwrSuppySpecsAppNote documenatation <<

Text preview - extract from the document

                                                         Number 3137



Application Note                                        Understanding Linear Power
           Series                                       Supply Specifications

Introduction to Power Supply Specifications                                         power supply is in CV or CC mode depends not only on the user
                                                                                    settings, but also on the resistance of the load. A power supply
At first glance, a variable DC power supply appears to be a
                                                                                    has different specifications that apply when it is in CV mode and
fairly simple device. However, it is a sophisticated, accurate,
                                                                                    when it is in CC mode.
electrically-rugged workhorse. It must reliably deliver voltage
and current that is stable, precise, and clean, no matter its                       Accuracy and Resolution
load--resistive, inductive, capacitive, low impedance, high
impedance, steady-state, or variable. How well the power supply                     At any given time, either voltage or current is being regulated
fulfills this mission and where it reaches its limits are defined                   by the power supply and matches the setting within the
in its specifications. Choosing the right power supply for your                     instrument's accuracy.
application requires a good understanding of power supply
