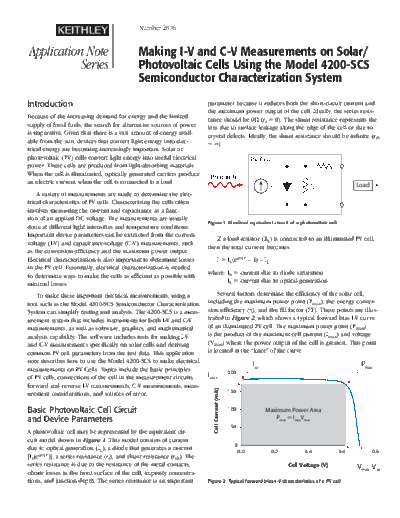

Image preview - the first page of the document



>> Download 2876 Photovoltaic App Note documenatation <<

Text preview - extract from the document

                                               Number 2876


Application Note                               Making IV and CV Measurements on Solar/
           Series                              Photovoltaic Cells Using the Model 4200SCS
                                               Semiconductor Characterization System

Introduction                                                               parameter because it reduces both the short-circuit current and
                                                                           the maximum power output of the cell. Ideally, the series resis-
Because of the increasing demand for energy and the limited                tance should be 0 (rs = 0). The shunt resistance represents the
supply of fossil fuels, the search for alternative sources of power        loss due to surface leakage along the edge of the cell or due to
is imperative. Given that there is a vast amount of energy avail-          crystal defects. Ideally, the shunt resistance should be infinite (rsh
able from the sun, devices that convert light energy into elec-            = ).
trical energy are becoming increasingly important. Solar or
photovoltaic (PV) cells convert light energy into useful electrical                                          PV Cell                       rs
power. These cells are produced from light-absorbing materials.
When the cell is illuminated, optically generated carriers produce          Photon h
an electric current when the cell is connected to a load.                                                              IL            rsh              Load RL
    A variety of measurements are made to determine the elec-
trical characteristics of PV cells. Characterizing the cells often
involves measuring the current and capacitance as a func-
tion of an applied DC voltage. The measurements are usually
                                                                           Figure 1. Idealized equivalent circuit of a photovoltaic cell
done at different light intensities and temperature conditions.
Important device parameters can be extracted from the current-
                                                                              If a load resistor (R L) is connected to an illuminated PV cell,
voltage (I-V) and capacitance-voltage (C-V) measurements, such
                                                                           then the total current becomes:
as the conversion efficiency and the maximum power output.
Electrical characterization is also important to determine losses                     I = IS(eqV/kT
