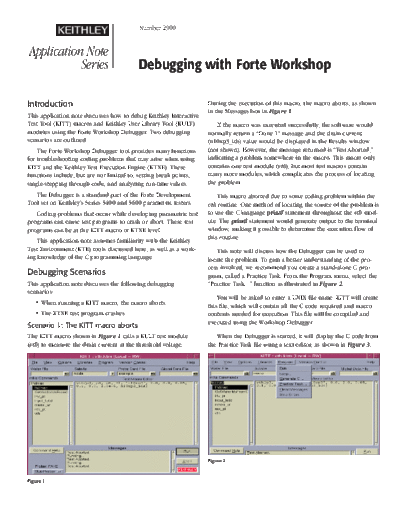

Image preview - the first page of the document



>> Download 2900 Debugging App Note documenatation <<

Text preview - extract from the document

                                          Number 2900


Application Note
           Series                         Debugging with Forte Workshop

Introduction                                                        During the execution of this macro, the macro aborts, as shown
                                                                    in the Messages box in Figure 1.
This application note discusses how to debug Keithley Interactive
Test Tool (KITT) macros and Keithley User Library Tool (KULT)          If the macro was executed successfully, the software would
modules using the Forte Workshop Debugger. Two debugging            normally return a "Done 1" message and the drain current
scenarios are outlined.                                             (n10xp3_ids) value would be displayed in the Results window
    The Forte Workshop Debugger tool provides many functions        (not shown). However, the message returned is "Test Aborted,"
for troubleshooting coding problems that may arise when using       indicating a problem somewhere in the macro. This macro only
KITT and the Keithley Test Execution Engine (KTXE). These           contains one test module (vth), but most test macros contain
functions include, but are not limited to, setting break points,    many more modules, which complicates the process of locating
single-stepping through code, and analyzing run-time values.        the problem.
   The Debugger is a standard part of the Forte Development             This macro aborted due to some coding problem within the
Tool set on Keithley's Series S400 and S600 parametric testers.     vth routine. One method of locating the source of the problem is
   Coding problems that occur while developing parametric test      to use the C language printf statement throughout the vth mod-
programs can cause test programs to crash or abort. These test      ule. The printf statement would generate output to the terminal
programs can be at the KITT macro or KTXE level.                    window, making it possible to determine the execution flow of
                                                                    this routine.
    This application note assumes familiarity with the Keithley
Test Environment (KTE) tools discussed here, as well as a work-        This note will discuss how the Debugger can be used to
ing knowledge of the C programming language.                        locate the problem. To gain a better understanding of the pro-
                                                                    cess involved, we recommend you create a stand-alone C pro-
Debugging Scenarios                                                 gram, called a Practice Task. From the Program menu, select the
This application note discusses the following debugging             "Practice Task..." function as illustrated in Figure 2.
scenarios:
                                                                        You will be asked to enter a UNIX file name. KITT will create
