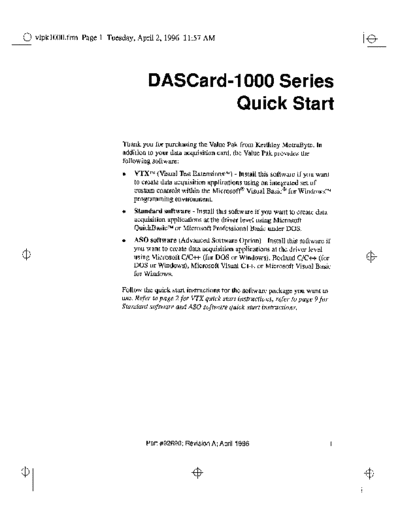

Image preview - the first page of the document

>> Download 92690A(DASCard1000) documenatation <<

Text preview - extract from the document

lpklOOO.fm Page 1 Tuesday, April 2, 1996 11:57 AM

DASCard-1000 Series
Quick Start
Thank you for purchasing the Value Pak from Keithley MetraByte. In
addition to your data acquisition card, the Value Pak provides the
following software:
VTXm (Visual Test ExtensionsTM) Install this software if you want
-
to create data acquisition applications using an integrated set of
custom controls within the Microsoft@ Visual Basic@for Windows"
programming environment.
Standard software - Install this software if you want to create data
acquisition applications at the driver level using Microsoft
QuickBasic? or Microsoft Professional Basic under DOS.
AS0 software (Advanced Software Option) - Install this software if
you want to create data acquisition applications at the driver level
using Microsoft C/C++ (for DOS or Windows), Borland C/C++ (for
DOS or Windows), Microsoft Visual C++, or Microsoft Visual Basic
for Windows.

Follow the quick start instructions for the software package you want to
use. Refer to page 2 for VTX quick start instructions; refer to page 9 for
Standard sofmare and AS0 software quick start instructions.

Part #92690; Revision A; April 1996 1
41 lpklOOO.frm Page 2 Tuesday, April 2, 1996 1 I:57 AM 4

VTX Quick Start

* Install the software.
If you need help during this procedure, refer to Chapter 1 of your I/TX
User's Guide or to your Visual Basic documentation.
1. Install Version 3.0 or 4.0 (the 16-bit version) of Visual Basic for
Windows.
2. Insert the VTX DAS disk in the appropriate disk drive.
3. If you are using Windows 3.1:
- From the File men" of the Program Manager, choose Run,
If you are using Windows 95:
- From the Windows 95 task bar, click Start and point to Run.
4. ln the Run dialog box, enter the appropriate drive letter and the setup
command. For example, if the VTX DAS disk is in drive A, enter
a: \setup
5. Respond to the prompts, making snre that you include the
4 DASCard-1000 Series software and that you choose to automatically
add the VTX controls to your Visual Basic Toolbox.
4
6. When the installation is complete, review the README tile for
important information.

DASCard-1000 Series Quick Start
41 lpklOOO.frm Page 3 Tuesday, April 2,1996 11:57 AM

* Register and configure your card, and install the Keithley
Memory Manager.
If you need help during this procedure, refer to Chapter 1 of your VTX
User's Guide.
1. If you are using Windows 3.1:
- Prom the Keithley VTX group window in the Program Manager,
double-click the VTX Configuration icon.
vrx
Configuration If you are using Windows 95:
- From the Windows 95 task bar, click Start, and then point to
Programs, Keithley VTX, and VTX Configuration.
2. From the DAS Hardware configuration window (displayed on top),
choose the Add New button to register your card for use with the
VTX software.
The Add New Board dialog box appears,with a list of the board
families whose VTX-compatible software is currently installed.
3. From the Add New Board dialog box, select DASCard-1000 Series
and choose the OK button.
The DASCard-1000 Configuration panel appears.
4 4. From the Name list, select the appropriate card type.
4
For this quick start session,the remaining default values are assumed.
If your configuration differs from the default settings, refer to
Chapter 3 of your DASCard-1000 Series User's Guide for help on
configuring the card.
5. To savethe configuration, choose the Save option from the Pile menu.
6. To exit the DASCard-1000 Configuration panel, choose the Exit
option from the File Menu or choose the Exit button.
7. Choose the Keithley Memory Manager tab.
8. In the Desired Setting field, enter the amount of memory that your
VTX applications will require (the default is 128K bytes).
9. Choose the Update button.
10. If you changed the default value, choose the Restart Windows button
to ensure,thatthe changes take effect immediately.
11. To exit the VTX configuration utility, choose the Close button.

VTX Quick Start 3
A?1 lpklOOO.frm Page 4 Tuesday, April 2,1996 11:57 AM

* Install PCMCIA Card and Socket Services.
If you are using Windows 3.1:
- Make sure that PCMCIA Card and Socket Services (PCMCIA
standard 2.10 or higher) are installed. `@pically, PCMCIA Card and
Socket Services are loaded from your CONFIGSYS file. However,
many portable computers are shipped with PCMCIA Card and Socket
Services already installed; in these cases,you may be unaware of the
name of the Card and Socket Services or how they are used in your
computer.
If you are using Windows 95:
- Install the CardWorks for Windows 95 software, which was shipped
with your DASCard-1000 Series card, and restart your computer.
Refer to the CardWorks Quick Reference Guide for information.

* Load the Enabler.
If you need help during this procedure, refer to Chapter 3 of your
DASCard-1000 Series User's Guide.
1. Exit Windows and return to DOS. (You cannot load the Enabler from
the MS-DOS Prompt in Windows.)
4 2. Change to the directory containing the Enabler (KMENABLEEXE) 4
and enter the following at the DOS prompt:

The Enabler requests a base address,interrupt level, and memory
segment addressfor your DASCard-1000 Series card from PCMCIA
Card Services.

DASCard-1000 Series Quick Start

4 4
& 1 lpklOOO.frm Page 5 Tuesday, April 2, 1996 11:57 AM

* Install the card.
If you need help during this procedure, refer to Chapter 3 of your
DASCard-1000 Series User's Guide.
1. Following proper antistatic techniques, unpack and inspect the card.
2. If necessary,remove the cover from the lfipe II, PCMCIA socket 0.
3. Insert the 68-pin PCMCIA bus connector end of your DASCard-1000
Series card into socket 0 until it makes contact.
4. Replace the socket cover, if appropriate.
5. If your hardware does not support hot-swapping, you may have to
reapply power to your DASCard-1000 Series card using the
appropriate PCMCIA Card Services function.

* Run the diagnostics utility.
If you need help during this procedure, refer to Chapter 3 of your
DASCard-1000 Series User5 Guide.
1. Exit Windows and return to DOS, if necessary.
2. Change to the directory containing the diagnostics utility
(KMINFO.EXE) and enter the following at the DOS prompt:
KMINFO
The diagnostics utility displays information about your
DASCard-1000 Series card, including the base addressand interrnpt
level assignedby PCMCIA Card Services. If either the base address
or interrnpt level displayed is being used by another device in your
system, load the Enabler again using command-line options to select
an unused base addressor interrupt level. Refer to Chapter 3 of your
DASCard-1000 Series User's Guide for information.

VTX Quick Start 5
1
43 lpklOOO.fnu Page 6 Tuesday, April 2, 1996 1 I:57 AM

* Connect a signal to the card.
If you need help during this procedure, refer to Chapter 4 of your
DASCard-1000 Series User's Guide.
1. Attach an STP-37 screw terminal panel to the DASCard-1000 Series
card, as shown. If you are using an EXP-1600 expansion accessory,
refer to Chapter 4 of your DASCard-1000 Series User's Guide for
cabling information.

For CJC sensor

CAB-1000
L
Jl

DASCard-1000
Series Card

STP-37

+b 2. Wire an analog input signal to channel 0 of the STP-37, as shown. If
your configuration differs, refer to Chapter 4 of your DASCard-1000
Series User's Guide for wiring information.

Pin
37 CHOHI
Voltage +
source 19 AMPLO
I

AGND 10 kc2
29

DASCard-I 000
Series Card

6 DASCard-1000 Series Quick Start
$t 1
lpklOOO.frm Page7 Tuesday, April 2,1996 1157 Ah4

* Verify that the card and software are working properly.
If you need help, refer to your VTX User's Guide or to the online help.
1. Start Windows, then start Visual Basic by double-clicking the
Microsoft Visual Basic icon in the Keithley VTX window. A new
form appears.
2. Double-click the VTX DAS control icon in the Visual Basic Toolbox
to place the control in the middle of the Visual Basic form.
3. Make sure that the DAS control is selected by clicking it once with
the mouse. While pressing and holding down the left mouse button,
use the mouse to drag the DAS control to the left side of the form.
4. Double-click the VTX Text control icon to place the control on the
form.
5. Click the DAS control once to select it, press F4 to display the
Properties window, and double-click the ProcessSrcproperty in the
Properties window until your DASCard-1000 Series card name
appears.
6. Click the Text control once to select it, press F4 to display the
Properties window, and double-click the Processproperty in the
Properties window until the Grid process appears.
7. Click the Text control again to select it, and use the mouse to drag one
of the corner sizing handles until the Text control is large enough to
hold several samples.

VTX Quick Start 7
41 lpklOOO.frm Page 8 Tuesday, April 2, 1996 11:57 AM

8. Commct the data output connection point of the DAS control to the
data input connection point of the Text control, as follows:
- Position the cursor over the small, dark rectangle on the right side
of the DAS control. This rectangle is called the dura outpur
connection point of the DAS control.

+--datao"tp"t
mnnection point

- When the cursor changesto an arrow with a wiring icon, press
and hold down the left mouse button.
When the arrow disappears,drag the wiring icon to the small,
dark rectangle on the left side of the Text control. This rectangle
is called the data input connection point.

4 - When the arrow with the wiring icon reappears,release the left
mouse button.
4
You should see a solid line that connects the two controls together.
9. Run the program by choosing Start from the Visual Basic Run menu.
If your card and the software are working properly, the program
displays the data from channel 0 in a grid. If data is not displayed or if
an error messageappears,refer to Chapter 7 of your DASCard-1000
Series User's Guide. If you cannot resolve the problem, call
(508) 880-3000 for technical support.

Now that you've verified that your card and software are working
properly, you can configure the card and software according to your needs
and build a more sophisticated application using VTX. For a VTX
tutorial, refer to Chapter 2 of your VTX User's Guide. Refer to the VTX
online help for detailed information.

DASCard-1000 Series Quick Start

+b 4
41 lpklOOO.frm Page 9 Tuesday, April 2, 1996 1 I:57 AM 4

Standard Software or AS0 Software Quick Start

* Install the software.
If you need help during this procedure, refer to Chapter 3 of your
DASCard-1000 Series UserS Guide.
1. Insert disk #l of the standard or AS0 software package in the
appropriate disk drive.
2. Start Windows, if necessary.
3. If you are using Windows 3.1:
- From the File menu of the Program Manager, choose Run.
If you are using Windows 95:
- From the Windows 95 task bar, click Start and point to Run.
4. In the Run dialog box, enter the appropriate drive letter and the setup
command. For example, if the disk is in drive A, enter
a: \setup
5. Respond to the prompts.
4 The installation program automatically creates a directory on the 4
drive you specified and then copies all files, expanding any
compressedfiles, to the new directory.
6. When the installation is complete, review the FILES.TXT and
READMELTXT files for important information.

Standard Software or AS0 Software Quick Start 9
lpklOOO.frm Page 10 Tuesday, April 2, 1996 11:57 AM 4

* Create a configuration file.
If you need help during this procedure, refer to Chapter 3 of your
DASCard-1000 Series User's Guide.
1. lf you are using Windows 3.1:
- From the Keithley DASCard-1000 group window in the Program
Manager, double-click the DASCard-1000 Series Configuration
icon.
If you are using Windows 95:
- From the Windows 95 task bar, click Start, and then point to
Programs, Keithley DASCard-1000, and DASCard-1000
Configuration.
The DASCard- 1000 Configuration panel appears.
2. From the Name list, select the appropriate card type.
For this quick start session,the remaining default values are assumed.
If your configuration differs from the default settings, refer to
Chapter 3 of your DASCard-1000 Series User's Guide for help on
configuring the card.
3. To savethe configuration in the default configuration file
4 (DASlOOOCFG), choose the Save option from the File menu. 4
4. To exit the DASCard-1000 Configuration panel, choose the Exit
option from the File Menu or choose the Exit button.

* Install the Keithley Memory Manager (Windows users only).
If you need help during this procedure, refer to Appendix C of your
DASCard-1000 Series User's Guide.
1. If you are using Windows 3.1:
- From the Keithley DASCard-1000 group window in the Program
Manager, double-click the Memory Manager Setup icon.
Memoy
Manager If you are using Windows 95:
Setup - From the Windows 95 task bar, click Start, and then point to
Programs, Keithley DASCard-1000, and Memory Manager
Setup.
The Keithley Memory Manager - Setup panel appears.
2. In the Desired Setting field, enter the amount of memory that your
VTX applications will require (the default is 128K bytes).

10 DASCard-1000 Series Quick Start
1
4+
lpklOOO.frrn Page 11 Tuesday, April 2, 1996 11:57 Ah4

3. Choose the Update button.
4. If you changed the default value, choose the Restart Windows button
to ensure that the changes take effect immediately.

* Install PCMCIA Card and Socket Services.
If you are using Windows 3.1:
- Make sure that PCMCIA Card and Socket Services (PCMCIA
standard 2.10 or higher) are installed. Typically, PCMCIA Card and
Socket Services are loaded from your CONFIGSYS file. However,
many portable computers are shipped with PCMCIA Card and Socket
Services already installed; in these cases,you may be unaware of the
name of the Card and Socket Services or how they are used in your
computer.
lf you are using Windows 95:
- Install the CardWorks for Windows 95 software, which was shipped
with your DASCard-1000 Series card, and restart your computer.
Refer to the CardWorks Quick Reference Guide for information.

* Load the Enabler.
+b If you need help, refer to Chapter 3 of your DASCard-1000 Series User's
Guide.
1. Exit Windows and return to DOS. (You cannot load the Enabler from
the MS-DOS Prompt in Windows.)
2. Change to the directory containing the Enabler (KMENABLEEXE)
and enter the following at the DOS prompt:
KMENABLE
The Enabler requests a base address,interrupt level, and memory
segment addressfor your DASCard-1000 Series card from PCMCIA
Card Services.

Standard Software or AS0 Software Quick Start 11
4biv
lpklOOO.frm Page 12 Tuesday, April 2, 1996 11:57 AM

4. Replace the socket cover, if appropriate.
5. If your hardware does not support hot-swapping, you may have to
reapply power to your DASCard-1000 Series card using the
approprrate PCMCIA Card Services function.

* Run the diagnostics utility.
If you need help during this procedure, refer to Chapter 3 of your
DASCard-1000 Series User's Guide.
1. Exit Windows and return to DOS, if necessary.
2. Change to the directory containing the diagnostics utility
(KMINFO.EXE) and enter the following at the DOS prompt:
KMINFO
The diagnostics utility displays information about your
DASCard-1000 Series card, including the base addressand interrnpt
level assignedby PCMCIA Card Services. If either the base address
or interrupt level displayed is being used by another device in your
system, load the Enabler again using command-line options to select
an unused base addressor interrupt level. Refer to Chapter 3 of your
DASCard-1000 Series User's Guide for information.

-For CJC sensor

I I u
DASCard-tOCC
Series Card 19
L-E
a
STP-37

12 DASCard-1000 Series Quick Start
41 lpklOOO.frm Page 13 Tuesday, April 2,1996 11:57 AM 4

2. Wire an analog input signal to channel 0 of the STP-37, as shown. If
your configuration differs, refer to Chapter 4 of your DASCard-1000
Series User's Guide for wiring iuformation.

DA.sCard-i000
Series Card

* Verify that the card and software are working properly.
If you need help during this procedure, refer to Chapter 5 of your
4 DASCard-1000 Series User's Guide and to the online help provided for 4
the DASCard-1000 Series Control Panel.
1. If you are using Windows 3.1:
- From the Keithley DASCard-1000 group window in the Program
Manager, double-click the DASCard-1000 Series Control Panel
icon.
If you are using Windows 95:
- From the Windows 95 task bar, click Start, and then point to
Programs, Keitbley DASCard-1000, and DASCard-1000 Control
Panel.
The Open Configuration File panel appears.
2. Choose the OK button to use the default configuration file
@ASlOOO.CFG).
The DASCard-100.xTest & Control panel appears,where
DASCard-100.x indicates the model of your DASCard-1000 Series
card. This panel allows you to acquire, display, and transfer analog
input data and to set up and display the analog input parameters.

Standard Software or AS0 Software Quick Start 13
1
+I+
lpklOOO.frm Page 14 Tuesday, April 2, 1996 1 I:57 Ah4

3. Read the data from channel 0 by clicking the Start button.
If your card and the software are working properly, the program
displays the data from channel 0. If data is not displayed or if an error
occnrs, refer to Chapter I of your DASCard-1000 Series User's
Guide. If you cannot resolve the problem, call (508) 880-3000 for
technical support.
4. When you are finished using the control panel, choose the Exit option
from the File menu.

Now that you've verified that your card and software are working
properly, you can configure the card and software according to your needs
and build your application using the Function Call Driver. Refer to the
source code examples and the EXAMPLES.TXT file in the installation
directory for programming tips. Refer to your DASCard-1000 Series
Function Call Driver User's Guide for detailed information.

0 Copyright Keithley Instruments. Inc., 1996.
MewByte is a trademark Keithley Instruments, AII otherbrandand productnames
of Inc. are
trademarks registered trademarks of their respective companies.
of

14 DASCard-I 000 Series Quick Start

◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
