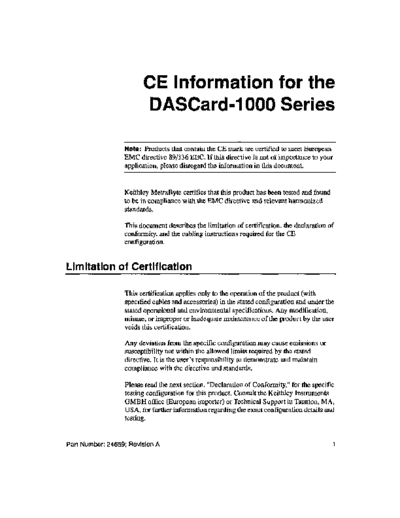

Image preview - the first page of the document
>> Download 24659A(DASCard1000CEInfo) documenatation <<
Text preview - extract from the document
CE Information for the
DASCard-1000 Series
Note: Products that contain the CE mark are certified to meet European
EMC diiective 89/336 EEC. If this directive is not of importance to your
application, please disregard the information in this document.
Keithley MetraByte certifies that this product has been tested and found
to be in compliance with the EMC directive and relevant harmonized
standards.
This document describes the limitation of certification, the declaration of
conformity, and the cabling instructions required for the CB
configuration.
Limitation of Certification
This certification applies only to the operation of the product (with
specified cables and accessories)in the statedconfiguration and under the
stated operational and enviromnental specifications. Any modification,
misuse, or improper or inadequate maintenance of the product by the user
voids this certification.
Any deviation from the specific configuration may cause emissions or
susceptibility not within the allowed limits required by the stated
directive. It is the user's responsibility to demonstrate and maintain
compliance with the directive and standards.
Pleaseread the next section, "Declaration of Conformity," for the specific
testing configuration for this product. Consult the Keithley Instruments
GMBH offtce (Buropean importer) or Technical Support in Taunton, MA,
USA, for further information regarding the exact configuration details and
testing.
Pari Number: 24650; Revision A 1
Declaration of Conformity
Application of Council Directive(s) 89/336/EEC
Standard(s)to which Conformity is EN50081-1, EN50082-1
Declared
Manufacturer's Name Keithley MetraByte
Importer's Name Keithley Instruments GMBH
Importer's Address Landsberger Str.65 D-82110 Germering, Munich
Type of Eqoipment Data Acquisition Plug-in Boards
Model Numbers DASCard-1001, DASCard-1002, or DASCard-1003, STA-U,
CAB-1000 cable, and snap-on ferrite clip
Year of Maoufachwe 1996
I, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s) and Standard(s).
Place:Taunton, MA USA
(Signature)
Date: 01 April 1996
(Name)
i r Manaeer
(position)
2 April 1996
Cabling Instructions for the CE Configuration
Use the CAB-1000 cable to connect the DASCard-1000 Series card
directly to the STA-U, as shown in Figure 1.
CAB-1000
Figure 1. Conneoting the DASCard-1000 Series Card to an STA-U
To complete the CE configuration, perform the following steps:
1. Position the supplied ferrite clip about l/2-inch from the end of the
cable connector attachedto the DASCard-1000 Series card, as shown
in Figure 2.
2. Snap the ferrite clip to the CAB-1000 cable.
Fsrk Clip;
Snap on l/Z-inch from the
cable wnneckv to the
DASCard-1000 Series card
Figure 2. Snapping on the Ferrite Clip
Part Number: 24650; Revision A 3
