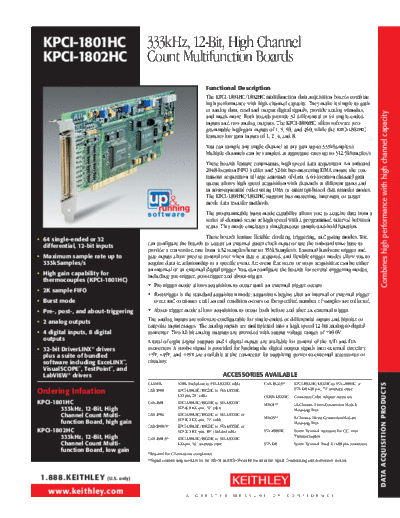

Image preview - the first page of the document
>> Download KPCI-1801HC_1802HC_DataSht documenatation <<
Text preview - extract from the document
KPCI-1801HC 333kHz, 12-Bit, High Channel
KPCI-1802HC Count Multifunction Boards
Functional Description
The KPCI-1801HC/1802HC multifunction data acquisition boards combine
high performance with high channel capacity. They make it simple to gath-
er analog data, read and output digital signals, provide analog stimulus,
Combines high performance with high channel capacity
and much more. Both boards provide 32 differential or 64 single-ended
inputs and two analog outputs. The KPCI-1801HC offers software pro-
grammable high-gain inputs of 1, 5, 50, and 250, while the KPCI-1802HC
features low gain inputs of 1, 2, 4, and 8.
You can sample any single channel at any gain up to 333kSamples/s.
Multiple channels can be sampled at aggregate rates up to 312.5kSamples/s.
These boards feature continuous, high speed data acquisition. An onboard
2048-location FIFO buffer and 32-bit bus-mastering DMA ensure the con-
tinuous acquisition of large amounts of data. A 64-location channel gain
queue allows high speed acquisition with channels at different gains and
in non-sequential order using DMA or interrupt-based data transfer modes.
The KPCI-1801HC/1802HC support bus mastering, interrupt, or target
mode data transfer methods.
The programmable burst mode capability allows you to acquire data from a
series of channel scans at high speed with a programmed interval between
scans. This mode emulates a simultaneous sample-and-hold function.
