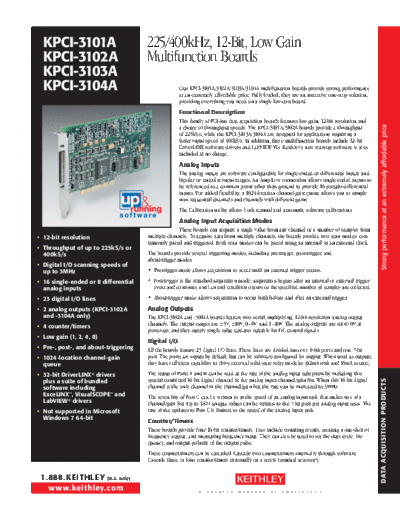

KPCI-3101A 225/400kHz, 12-Bit, Low Gain
KPCI-3102A Multifunction Boards
KPCI-3103A
KPCI-3104A Our KPCI-3101A/3102A/3103A/3104A multifunction boards provide strong performance
at an extremely affordable price. Fully loaded, they are an attractive one-stop solution,
providing everything you need on a single low-cost board.
Functional Description
This family of PCI-bus data acquisition boards features low gain, 12-bit resolution and
a choice of throughput speeds. The KPCI-3101A/3102A boards provide a throughput
Strong performance at an extremely affordable price
Strong performance at an extremely affordable price
of 225kS/s, while the KPCI-3103A/3104A are designed for applications requiring a
faster input speed of 400kS/s. In addition, these multifunction boards include 32-bit
DriverLINX software drivers and LabVIEW VIs. Keithley's new start-up software is also
included at no charge.
Analog Inputs
The analog inputs are software configurable for single-ended or differential inputs and
bipolar or unipolar input ranges. An Amp Low connection allows single-ended inputs to
be referenced to a common point other than ground to provide 16 pseudo-differential
inputs. For added flexibility, a 1024-location channel-gain queue allows you to sample
non-sequential channels and channels with different gains.
The Calibration utility allows both manual and automatic software calibrations.
Analog Input Acquisition Modes
These boards can acquire a single value from any channel or a number of samples from
