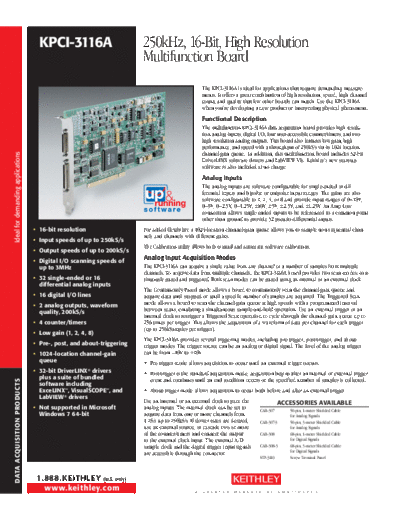

Image preview - the first page of the document
>> Download KPCI-3116A documenatation <<Text preview - extract from the document KPCI-3116A 250kHz, 16-Bit, High Resolution
Multifunction Board
The KPCI-3116A is ideal for applications that require demanding measure-
ments. It offers a great combination of high resolution, speed, high channel
count, and quality that few other boards can match. Use the KPCI-3116A
when you're developing a new product or interpreting physical phenomena.
Functional Description
The multifunction KPCI-3116A data acquisition board provides high resolu-
tion analog inputs, digital I/O, four user-accessible counter/timers, and two
high resolution analog outputs. This board also features low gain, high
performance, and speed with a throughput of 250kS/s via its 1024 location
channel-gain queue. In addition, this multifunction board includes 32-bit
Ideal for demanding applications
Ideal for demanding applications
DriverLINX software drivers and LabVIEW VIs. Keithley's new start-up
software is also included at no charge.
Analog Inputs
The analog inputs are software configurable for single-ended or dif-
ferential inputs and bipolar or unipolar input ranges. The gains are also
software configurable to 1, 2, 4, or 8 and provide input ranges of 0
