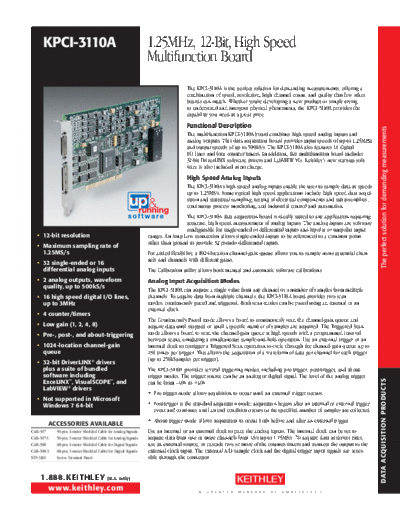

Image preview - the first page of the document



>> Download KPCI-3110A documenatation <<

Text preview - extract from the document

                                                        KPCI-3110A                                                 1 .25MHz, 12-Bit, High Speed
                                                                                                                   Multifunction Board
                                                                                                                                     The KPCI-3110A is the perfect solution for demanding measurements, offering a
                                                                                                                                     combination of speed, resolution, high channel count, and quality that few other
                                                                                                                                     boards can match. Whether you're developing a new product or simply trying
                                                                                                                                     to understand and interpret physical phenomena, the KPCI-3110A provides the
                                                                                                                                     capability you need at a great price.
                                                                                                                                     Functional Description
The perfect solution for demanding measurements




                                                                                                                                                                                                                               The perfect solution for demanding measurements
                                                                                                                                     The multifunction KPCI-3110A board combines high speed analog inputs and
                                                                                                                                     analog outputs. This data acquisition board provides input speeds of up to 1.25MHz
                                                                                                                                     and output speeds of up to 500kS/s. The KPCI-3110A also features 16 digital
                                                                                                                                     I/O lines and four counter/timers. In addition, this multifunction board includes
                                                                                                                                     32-bit DriverLINX software drivers and LabVIEW VIs. Keithley's new start-up soft-
                                                                                                                                     ware is also included at no charge.
                                                                                                                                     High Speed Analog Inputs
                                                                                                                                     The KPCI-3110A's high speed analog inputs enable the user to sample data at speeds
                                                                                                                                     up to 1.25MS/s. Some typical high speed applications include high speed data acqui-
                                                                                                                                     sition and statistical sampling, testing of electrical components and subassemblies,
                                                                                                                                     continuous process monitoring, and industrial control and automation.
                                                                                                                                   The KPCI-3110A data acquisition board is ideally suited to any application requiring
                                                                                                                                   accurate, high speed measurement of analog inputs. The analog inputs are software
                                                                                                                                   configurable for single-ended or differential inputs and bipolar or unipolar input
