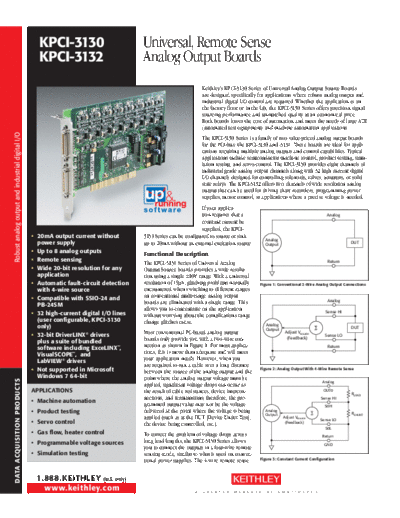

Image preview - the first page of the document
>> Download KPCI-3130-3132 documenatation <<
Text preview - extract from the document
KPCI-3130 Universal, Remote Sense
KPCI-3132 Analog Output Boards
Keithley's KPCI-3130 Series of Universal Analog Output Source Boards
are designed specifically for applications where robust analog output and
industrial digital I/O control are required. Whether the application is on
the factory floor or in the lab, the KPCI-3130 Series offers precision signal
sourcing performance and unmatched quality at an economical price.
Both boards lower the cost of automation and meet the needs of large ATE
(automated test equipment) and machine automation applications.
Robust analog output and industrial digital I/O
Robust analog output and industrial digital I/O
The KPCI-3130 Series is a family of two value-priced analog output boards
for the PCI-bus: the KPCI-3130 and -3132. These boards are ideal for appli-
cations requiring multiple analog outputs and control capabilities. Typical
applications include semiconductor machine control, product testing, simu-
lation testing, and servo control. The KPCI-3130 provides eight channels of
industrial grade analog output channels along with 32 high current digital
I/O channels designed for controlling solenoids, valves, actuators, or solid
state relays. The KPCI-3132 offers two channels of wide resolution analog
output that can be used for driving chart recorders, programming power
supplies, motor control, or applications where a precise voltage is needed.
If your applica-
tion requires that a Analog
constant current be
supplied, the KPCI-
