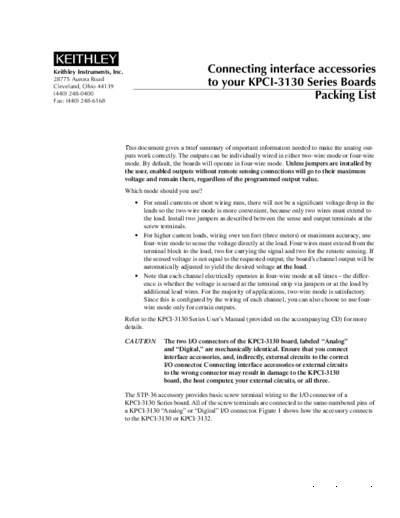

Image preview - the first page of the document



>> Download pa765a(Model_KPCI3130) documenatation <<

Text preview - extract from the document

Keithley Instruments, Inc.                                  Connecting interface accessories
28775 Aurora Road
Cleveland, Ohio 44139                                       to your KPCI-3130 Series Boards
(440) 248-0400
Fax: (440) 248-6168
                                                                                Packing List



                             This document gives a brief summary of important information needed to make the analog out-
                             puts work correctly. The outputs can be individually wired in either two-wire mode or four-wire
                             mode. By default, the boards will operate in four-wire mode. Unless jumpers are installed by
                             the user, enabled outputs without remote sensing connections will go to their maximum
                             voltage and remain there, regardless of the programmed output value.
                             Which mode should you use?
