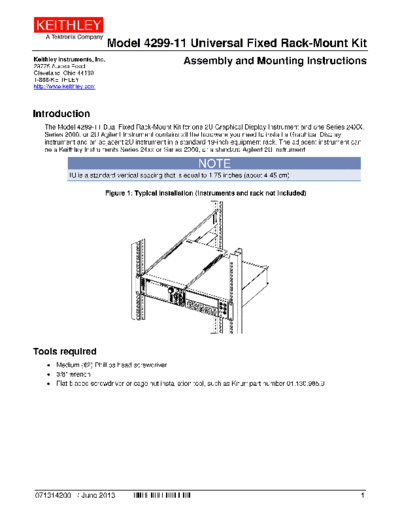

>> Download 071314200 (June 2013)(Model 4299-11) documenatation <<Text preview - extract from the document Model 4299-11 Universal Fixed Rack-Mount Kit
Keithley Instruments, Inc.
28775 Aurora Road
Assembly and Mounting Instructions
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Introduction
The Model 4299-11 Dual Fixed Rack-Mount Kit for one 2U Graphical Display Instrument and one Series 24XX,
Series 2000, or 2U Agilent Instrument contains all the hardware you need to install a Graphical Display
instrument and an adjacent 2U instrument in a standard 19-inch equipment rack. The adjacent instrument can
be a Keithley Instruments Series 24xx or Series 2000, or a standard Agilent 2U instrument.
1U is a standard vertical spacing that is equal to 1.75 inches (about 4.45 cm).
Figure 1: Typical installation (instruments and rack not included)
Tools required
