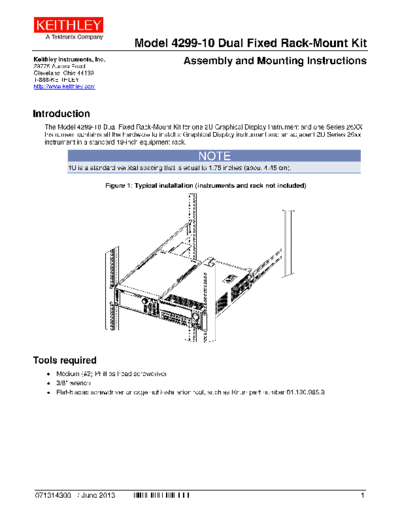

Image preview - the first page of the document
>> Download 071314300 (June 2013)(Model 4299-10) documenatation <<
Text preview - extract from the document
Model 4299-10 Dual Fixed Rack-Mount Kit
Keithley Instruments, Inc.
28775 Aurora Road
Assembly and Mounting Instructions
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Introduction
The Model 4299-10 Dual Fixed Rack-Mount Kit for one 2U Graphical Display Instrument and one Series 26XX
Instrument contains all the hardware to install a Graphical Display instrument and an adjacent 2U Series 26xx
instrument in a standard 19-inch equipment rack.
1U is a standard vertical spacing that is equal to 1.75 inches (about 4.45 cm).
Figure 1: Typical installation (instruments and rack not included)
Tools required
