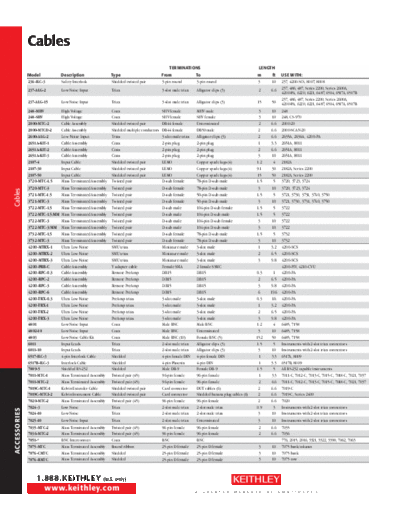

Image preview - the first page of the document
>> Download Acc_Cables documenatation <<
Text preview - extract from the document
Cables
TERMINATIONS LENGTH
Model Description Type From To m ft USE WITH:
236-ILC-3 Safety Interlock Shielded twisted pair 3-pin round 3-pin round 3 10 237, 4200-SCS, 8007, 8008
237, 486, 487, Series 2200, Series 2600A,
237-ALG-2 Low Noise Input Triax 3-slot male triax Alligator clips (3) 2 6.6
4200-PA, 6220, 6221, 6487, 6514, 6517A, 6517B
237, 486, 487, Series 2200, Series 2600A,
237-ALG-15 Low Noise Input Triax 3-slot male triax Alligator clips (3) 15 50
4200-PA, 6220, 6221, 6487, 6514, 6517A, 6517B
248-MHV High Voltage Coax SHV female MHV male 3 10 248
248-SHV High Voltage Coax SHV female SHV female 3 10 248, CS-970
2000-MTC-2 Cable Assembly Shielded twisted pair DB44 female Unterminated 2 6.6 2000-20
2000-MTCD-2 Cable Assembly Shielded multiple conductors DB44 female DB50 male 2 6.6 2000-SCAN-20
2600-ALG-2 Low Noise Input Triax 3-slot male triax Alligator clips (3) 2 6.6 2635A, 2636A, 4200-PA
2651A-KIT-1 Cable Assembly Coax 2-pin plug 2-pin plug 1 3.3 2651A, 8011
2651A-KIT-2 Cable Assembly Coax 2-pin plug 2-pin plug 2 6.6 2651A, 8011
2651A-KIT-3 Cable Assembly Coax 2-pin plug 2-pin plug 3 10 2651A, 8011
2107-4 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 1.2 4 2182A
2107-30 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 9.1 30 2182A, Series 2200
2107-50 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 15 50 2182A, Series 2200
3720-MTC-1.5 Mass Terminated Assembly Twisted pair D-sub female 78-pin D-sub male 1.5 5 3720, 3723, 3724
Side Text
3720-MTC-3 Mass Terminated Assembly Twisted pair D-sub female 78-pin D-sub male 3 10 3720, 3723, 3724
Cables
3721-MTC-1.5 Mass Terminated Assembly Twisted pair D-sub female 50-pin D-sub male 1.5 5 3721, 3730, 3731, 3740, 3750
3721-MTC-3 Mass Terminated Assembly Twisted pair D-sub female 50-pin D-sub male 3 10 3721, 3730, 3731, 3740, 3750
3722-MTC-1.5 Mass Terminated Assembly Twisted pair D-sub male 104-pin D-sub female 1.5 5 3722
3722-MTC-1.5/MM Mass Terminated Assembly Twisted pair D-sub male 104-pin D-sub male 1.5 5 3722
3722-MTC-3 Mass Terminated Assembly Twisted pair D-sub male 104-pin D-sub female 3 10 3722
3722-MTC-3/MM Mass Terminated Assembly Twisted pair D-sub male 104-pin D-sub male 3 10 3722
3732-MTC-1.5 Mass Terminated Assembly Twisted pair D-sub female 78-pin D-sub male 1.5 5 3732
3732-MTC-3 Mass Terminated Assembly Twisted pair D-sub female 78-pin D-sub male 3 10 3732
4200-MTRX-1 Ultra Low Noise SMU triax Miniature male 3-slot male 1 3.2 4200-SCS
4200-MTRX-2 Ultra Low Noise SMU triax Miniature male 3-slot male 2 6.5 4200-SCS
4200-MTRX-3 Ultra Low Noise SMU triax Miniature male 3-slot male 3 9.8 4200-SCS
4200-PRB-C Cable Assembly Y adapter cable Female SMA 2 female SSMC 4200-PIV, 4210-CVU
4200-RPC-0.3 Cable Assembly Remote PreAmp DB15 DB15 0.3 1 4200-PA
4200-RPC-2 Cable Assembly Remote PreAmp DB15 DB15 2 6.5 4200-PA
4200-RPC-3 Cable Assembly Remote PreAmp DB15 DB15 3 9.8 4200-PA
4200-RPC-6 Cable Assembly Remote PreAmp DB15 DB15 6 19.6 4200-PA
4200-TRX-0.3 Ultra Low Noise PreAmp triax 3-slot male 3-slot male 0.3 1ft 4200-PA
4200-TRX-1 Ultra Low Noise PreAmp triax 3-slot male 3-slot male 1 3.2 4200-PA
4200-TRX-2 Ultra Low Noise PreAmp triax 3-slot male 3-slot male 2 6.5 4200-PA
4200-TRX-3 Ultra Low Noise PreAmp triax 3-slot male 3-slot male 3 9.8 4200-PA
4801 Low Noise Input Coax Male BNC Male BNC 1.2 4 6485, 7158
4802-10 Low Noise Input Coax Male BNC Unterminated 3 10 6485, 7158
4803 Low Noise Cable Kit Coax Male BNC (10) Female BNC (5) 15.2 50 6485, 7158
6011 Input Leads Triax 2-slot male triax Alligator clips (3) 1.5 5 Instruments with 2-slot triax connectors
6011-10 Input Leads Triax 2-slot male triax Alligator clips (3) 3 10 Instruments with 2-slot triax connectors
6517-ILC-3 4-pin Interlock Cable Shielded 4-pin female DIN 4-pin female DIN 1 3.3 6517A, 8009
6517B-ILC-3 Interlock Cable Shielded 4-pin Phoenix 4-pin DIN 1 3.3 6517B, 8009
7009-5 Shielded RS-232 Shielded Male DB-9 Female DB-9 1.5 5 All RS-232 capable instruments
7011-MTC-1 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 1 3.3 7011-C, 7012-C, 7013-C, 7015-C, 7018-C, 7021, 7037
7011-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7011-C, 7012-C, 7013-C, 7015-C, 7018-C, 7021, 7037
7019C-MTC-1 Kelvin Extender Cable Shielded twisted pair Card connector DUT cables (6) 2 6.6 7019-C
7019C-MTCI-2 Kelvin Instrument Cable Shielded twisted pair Card connector Shielded banana plug cables (6) 2 6.6 7019-C, Series 2400
7020-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7020
7024-3 Low Noise Triax 2-slot male triax 2-slot male triax 0.9 3 Instruments with 2-slot triax connectors
ACCESSORIES
7024-10 Low Noise Triax 2-slot male triax 2-slot male triax 3 10 Instruments with 2-slot triax connectors
7025-10 Low Noise Input Triax 2-slot male triax Unterminated 3 10 Instruments with 2-slot triax connectors
7035-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7035
7036-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7036
7051-* BNC Interconnect Coax BNC BNC 776, 2015, 2016, 3321, 3322, 3390, 7062, 7063
7075-MTC Mass Terminated Assembly Round ribbon 25-pin D female 25-pin D female 3 10 7075 bank/column
7076-CMTC Mass Terminated Assembly Shielded 25-pin D female 25-pin D female 3 10 7075 bank
7076-RMTC Mass Terminated Assembly Shielded 25-pin D female 25-pin D female 3 10 7075 row
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
TERMINATIONS LENGTH
Model Description Type From To m ft USE WITH:
8-cable Set (includes 4 Triax (4) 3-slot triax (4) 3-slot triax (4) 3 10
7078-CSHP 7072 to HP-4145
BNC-to-triax adapters) Coax (4) BNC (4) BNC (4) 3 10
7078-DIN 707A Master/Slave Twisted pair (9) 8-pin DIN 8-pin DIN 1.8 6 707A
7078-MTC-5 Mass Terminated Assembly Twisted pair (12) 38-pin connector 38-pin connector 1.5 5 7071, 7071-4, 7074-D
7078-MTC-20 Mass Terminated Assembly Twisted pair (12) 38-pin connector 38-pin connector 6.1 20 7071, 7071-4, 7074-D
237, 2635A, 2636A, 6487, 6514,
7078-TRX-1 Low Noise Triax 3-slot male triax 3-slot male triax 0.3 1
6517A, 6517B, 7072, 7174A
237, 2635A, 2636A, 6487, 6514,
7078-TRX-3 Low Noise Triax 3-slot male triax 3-slot male triax 0.9 3
6517A, 6517B, 7072, 7174A
237, 2635A, 2636A, 6487, 6514,
7078-TRX-5 Low Noise Triax 3-slot male triax 3-slot male triax 1.5 5
6517A, 6517B, 7072, 7174A
237, 2635A, 2636A, 6487, 6514,
7078-TRX-10 Low Noise Triax 3-slot male triax 3-slot male triax 3 10
6517A, 6517B, 7072, 7174A
237, 2635A, 2636A, 6487, 6514,
7078-TRX-12 Low Noise Triax 3-slot male triax 3-slot male triax 4 12
6517A, 6517B, 7072, 7174A
237, 2635A, 2636A, 6487, 6514,
7078-TRX-20 Low Noise Triax 3-slot male triax 3-slot male triax 6.1 20
6517A, 6517B, 7072, 7174A
7078-TRX-6IN Low Noise Triax 3-slot male triax 3-slot triax 0.15 0.5 6430
7152-MTC-2 Low Noise Matrix Expansion Triax (5) 6-pin M-series coax 6-pin M-series coax 0.6 2 7152
Side Text
7152-MTC-10 Low Noise Matrix Expansion Triax (5) 6-pin M-series coax 6-pin M-series coax 3 10 7152
Cables
7152-TRX-10 Low Noise M-Series to Triax Triax (5) M-series connector 3-slot triax (5) 3 10 7152, 8006
7153-TRX Low Noise M-Series to Triax Triax (5) M-series connector 3-slot triax (5) 2 6 7153
7173-50-CSEP 4-cable Set Coax SMB female BNC male 0.6 2 7173-50
7705-MTC-2 Mass Terminated Assembly Twisted pair (25) D-sub male D-sub female 2 6.6 7703, 7705, 7707, 7709
7711-BNC-SMA 5 SMA to BNC Cables Coax SMA Male BNC Female 0.15 0.5 7711
7712-SMA-1 SMA Cables Coax SMA Male SMA Male 1 3.3 7116-MWS, 7711, 7712, System 41, System 46, System 46T
7754-3 BNC Coax BNC Male Alligator clips 0.9 3 Instruments with 2-slot BNC connectors
8007-GND-3 Safety Ground Wire Single wire Crimp lug Crimp lug 3 10 8007
8007-MTC-3 Mass Terminated Assembly Triax M-series connector 3-slot triax (12) 3 10 8007, 7072
Multiple terminations: Triax
8542-301 LIV Cable Multiple conductor DB9 female (2500), 2 dual bananas (24XX) 1.8 6 2500, Series 2400, System 25, 8542, 8544, 8544-TEC
GND wire
8607 1kV Test Cables Single wire (2) Safety banana Safety banana 1 3.3 2410, 6487, 6517A, 6517B
CA-18-1 Shielded Coax Dual banana plug Dual banana plug 1.2 4 Binding post inputs
CA-19-2 RG58 RG58 BNC male BNC male 1.5 5 4200-SCS
CA-126-1 Digital I/O Shielded DB25 male DB25 female 1.5 5 213, Series 2600A, Series 3700, Series 3700A
Series 2600A, 2701, 3390, Series 3700, Series
CA-180-3A Crossover cable Twisted pair RJ45 RJ45 3 10
3700A , 6221, all TSP-enabled instruments
8-position Phoenix
CA-321-1 Temperature Control Cable Multiple conductor DB15 female 1.8 6 2510, 8542, 8544
(CS-846 equivalent)
Dual Temperature Control Y cable to two 8-position Phoenix
CA-322-1 Multiple conductor DB15 female 1.8 6 2510, 8542, 8544, 8544-TEC
Cable (CS-846)
CA-404B RG188 Coax SMA male SMA male 2 6.5 4200-SCS
CA-405B RG188 Coax SMA male SMA male 0.15 0.5 4200-SCS
CA-406B RG188 Coax SMA male SMA male 0.33 1.08 4200-SCS
CA-446A Cable Assembly Coax SMA male SMA male 3 9.8 4210-CVU
CA-447A Cable Assembly Coax SMA male SMA male 1.5 5 4210-CVU
CA-451A RG188 Coax SMA male SMA male 0.108 0.35 4200-SCS
CA-452A RG188 Coax SMA male SMA male 0.204 0.67 4200-SCS
CA-557-1 Cable Assembly Multiple conductor 8-pin receptacle 8-pin receptacle 1 3.3 2651A, 8011
CA-557-2 Cable Assembly Multiple conductor 8-pin receptacle 8-pin receptacle 2 6.6 2651A, 8011
CA-557-3 Cable Assembly Multiple conductor 8-pin receptacle 8-pin receptacle 3 10 2651A, 8011
CA-558-2 Interlock Cable Twisted pair (2) 25-pin D-sub 3-pin 1 3.3 Series 2600A
S46-SMA-0.5 SMA Cable Coax SMA Male SMA Male 0.15 0.5 7116-MWS, 7711, 7712, System 41, System 46, System 46T
S46-SMA-1 SMA Cable Coax SMA Male SMA Male 0.30 1.0 7116-MWS, 7711, 7712, System 41, System 46, System 46T
ACCESSORIES
SC-9 Low Noise Coax Unterminated Unterminated Sold by the foot
SC-22 Low Noise Triax Unterminated Unterminated Sold by the foot CS-631
SC-93 Low Thermal Shielded Unterminated Unterminated Sold by the foot 2182-KIT
SC-182 Low Inductance Coax Unterminated Unterminated Sold by the foot 2302, 2303, 2303-PJ, 2304A, 2306, 2306-PJ
SC-200 General Purpose Shielded twisted pair Unterminated Unterminated Sold by the inch Series 2600A
2100, Series 2200, 3390, Series 3700,
USB-B-1 USB Cable Coax USB Type A USB Type B 1 3.3
Series 3700A, KUSB-3100 Series
2100, 3390, Series 3700, Series 3700A,
USB-B-3 USB Cable Coax USB Type A USB Type B 3 10
KUSB-3100 Series
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
Model 248-SHV: 3m (10 ft) of RG-8A/U coax
Model 236-ILC-3 Safety Interlock Cable: cable terminated with a SHV female connector Model 2107-* Low-Thermal Input Cables with
Designed to connect the lid interlock circuit of on both ends. Maximum operating voltage (rms) Spade Lugs: An input cable terminated with a
the Models 8007 and 8008 test fixtures to the is 5,000V. LEMO connector on one end and four copper
interlock circuit of the Model 237 SMU and 486
Side Text
spade lugs on the other.
Cables
and 487 Picoammeters. For use with: 248 and CS-970
2107-4 1.2m (4 ft) length
For use with: 237, 4200-SCS, 8007, 8008 2107-30 9.1m (30 ft) length
2107-50 15m (50 ft) length
For use with: 2182A, Series 2200
Model 2000-MTC-2 Cable Assembly: 2-meter
cable with a 44-pin connector on one end that is
designed to mate with the 2000-20 scanner card.
Model 237-ALG-*: Low noise triax cable (SC-22) The other end is unterminated for direct connec-
terminated with a 3-slot male triax connector on tion to measurement fixtures or devices.
one end and 3 alligator clips on the other. For use with: 2000-20 Model 2600-ALG-2: 2m (6.6 ft) cable terminated
237-ALG-2 2m (6.6 ft) length with a 3-slot male triax connector on one end
237-ALG-15 15m (50 ft) length and 3 alligator clips on the other.
For use with: 237, 486, 487, Series 2200, For use with: 2635A, 2636A, 4200-PA
Series 2600A, 4200-PA, 6220, 6221, 6487,
6514, 6517A, 6517B
ACCESSORIES
Model 2000-MTCD-2 Cable Assembly: 2-meter
Model 248-MHV: 3m (10 ft) of RG-8A/U coax cable with a 44-pin connector on one end that Model 2651A-KIT-*: High current, low impe-
cable terminated with a SHV female connec- is designed to mate with the 2000-SCAN-20 dance, coaxial cable assembly.
tor on one end and a MHV male connector on scanner card. The other end is equipped with a 2651A-KIT-1: 1m (3.3 ft).
the other. Maximum operating voltage (rms) 50-pin D-sub male connector. 2651A-KIT-2: 2m (6.6 ft).
is 5,000V.
For use with: 2000-SCAN-20 2651A-KIT-3: 3m (10 ft).
For use with: 248
For use with: 2651A, 8011
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
4200-MTRX-2: 2m (6.5 ft) (two included with
each 4200-SCS SMU not configured with a
4200-PA Remote PreAmp)
4200-MTRX-3: 3m (9.8 ft)
For use with: 4200-SCS
Model 3720-MTC-*: 78-pin D-sub female to
Model 3722-MTC-*/MM: 104-pin D-sub male to
78-pin D-sub male cable.
104-pin D-sub male cable.
3720-MTC-1.5: 1.5m (5 ft) length 3722-MTC-1.5/MM: 1.5m (5 ft) length
3720-MTC-3: 3m (10 ft) length 3722-MTC-3/MM: 3m (10 ft) length
For use with: 3720, 3723, 3724
For use with: 3722
Side Text
Cables
Model 4200-PRB-C: SMA to SSMC Y adapter
cable with local ground that connects the
4200-PIV package to DC probe manipulators.
The cable is terminated at one end with a single
female SMA. The other end splits into two
gold SSMC plugs (female connectors) and a
black wire with integrated connector, which is
Model 3721-MTC-*: 50-pin D-sub female to used to connect to the shield of another Model
Model 3732-MTC-*: 78-pin D-sub female to 4200-PRB-C cable.
50-pin D-sub male cable. 78-pin D-sub male cable.
3721-MTC-1.5: 1.5m (5 ft) length For use with: 4200-PIV, 4210-CVU
3732-MTC-1.5: 1.5m (5 ft) length
3721-MTC-3: 3m (10 ft) length
3732-MTC-3: 3m (10 ft) length
For use with: 3721, 3730, 3731, 3740, 3750
For use with: 3732
Model 4200-RPC-*: Remote PreAmp cable
terminated at each end with a high density
DB15 connector. This cable connects a Model
Model 3722-MTC-*: 104-pin D-sub male to 4200-SMU or 4210-SMU source measurement
104-pin D-sub female cable. unit installed in a Model 4200-SCS to a remotely
mounted Model 4200-PA PreAmp.
3722-MTC-1.5: 1.5m (5 ft) length
Model 4200-MTRX-*: Ultra low noise SMU triax 4200-RPC-0.3: 0.3m (1 ft) (for use inside prober
3722-MTC-3: 3m (10 ft) length cable is terminated with a miniature male triax shield)
For use with: 3722 connector on one end and a standard 3-slot 4200-RPC-2: 2m (6.5 ft) (one included with each
male triax connector on the other end. This 4200-PA)
cable connects a Model 4200-SMU or 4210-SMU
ACCESSORIES
4200-RPC-3: 3m (9.8 ft)
source measurement unit installed in a Model
4200-SCS to a test fixture. (4200-MTRX-* cables 4200-RPC-6: 6m (19.6 ft)
are intended only for connection to an SMU that For use with: 4200-PA
does not have a 4200-PA PreAmp installed.)
4200-MTRX-1: 1m (3.2 ft)
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
Model 4802-10: 3m (10 ft) of low noise coax
Model 4200-TRX-*: Ultra low noise PreAmp cable with male BNC connector at one end and 2 Slot Triax
triax cable terminated with a standard 3-slot unterminated at the other.
male triax connector on each end. This cable For use with: 6485, 7158 Model 6011 2-slot Triax Cable: 1.5m (5 ft) of
connects a Model 4200-PA PreAmp option
Side Text
triax cable (SC-22) terminated with a 2-slot triax
Cables
installed in the Model 4200-SCS to the plug on one end and three alligator clips on the
test fixture. other. Also available in 3m (10 ft) length (Model
4200-TRX-0.3: 0.3m (1 ft) (recommended for 6011-10).
remote location of the 4200-PA) For use with instruments with 2-slot triax
4200-TRX-1: 1m (3.2 ft) connectors
4200-TRX-2: 2m (6.5 ft) (two included with each
Model 4200-PA)
4200-TRX-3: 3m (9.8 ft)
For use with: 4200-PA
Model 6517-ILC-3 Interlock Cable: Designed to
Model 4803 Low Noise Cable Kit: Includes connect the Interlock of the 6517A with the 8009
15m (50 ft) of low noise coax cable, 10 male BNC test fixture. Configuring the 6517A with the 8009
connectors, and 5 female BNC chassis-mount test fixture results in all the electrode constants
connectors. already being programmed into the unit.
For use with: 6485, 7158
For use with: 6517A Electrometer, 8009
Model 4801 Input Cable: Low noise coax cable,
1.2m (48 in) in length, with male BNC connec-
tors on each end.
For use with: 6485, 7158
ACCESSORIES
Model 6517B-ILC-3 Interlock Cable: Designed
to connect the interlock of the 6517B with the
8009 test fixture. Configuring the 6517B with the
8009 test fixture results in all the electrode con-
stants already being programmed into the unit.
For use with: 6517B Electrometer, 8009
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
Model 7019C-MTC-1 Kelvin Extender Cable:
2m (6.6 ft) extension cable set for the Model
7019-C 6-wire Ohms Matrix Card. Provides Model 7020-MTC-2: 2m (6.6 ft) mass terminated
cabling to the DUT and is used for matrix
Side Text
cable assembly for connection to 7020. The
Cables
Model 7009-5 Shielded RS-232 Cable: 1.5m expansion. cable has 45 pairs with outer shield. The cable is
(5 ft) RS-232 cable with a male DB-9 connector For use with: 7019-C terminated at each end with 96-pin female DIN
at one end and a female DB-9 connector on the connectors with strain relief.
other end. Wired as a straight through, not as a For use with: 7020
null modem cable.
For use with: All RS-232 capable instruments
2 Slot Triax
Model 7019C-MTCI-2 6-wire Kelvin Extender Model 7024-* 2-slot Triax Cable: Low noise
and Instrument Cable: Used with Model triax cable (SC-22) with 2-slot male triax connec-
7019-C 6-Wire Ohms Matrix Card and a tors on each end.
SourceMeter instrument. The SourceMeter 7024-3 0.9m (3 ft)
cables are 0.6m (2 ft) long and the DUT cables 7024-10 3m (10 ft)
are 2m (6.6 ft) long. The cable set is used in a For use with instruments with 2-slot triax
basic system to test a resistor network. connectors
Model 7011-MTC-1: 1m (3.3 ft) mass terminated For use with: 7019-C, Series 2400
cable assembly for connection to 7011-C and SourceMeter Instruments
other switching cards. The cable has 45 pairs
with outer shield. The cable is terminated at
each end with 96-pin female DIN connectors
with strain relief. Also available in 2m (6.6 ft)
length (Model 7011-MTC-2).
For use with: 7011-C, 7012-C, 7013-C, 7015-C,
7018-C, 7021, 7022, 7037
ACCESSORIES
2 Slot Triax
Model 7025-10 2-slot Triax Cable: 3m (10 ft)
low noise triax input cable (SC-22) terminated
on one end with 2-slot male triax connector.
For use with instruments with 2-slot triax
connectors
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
Model 7051-*: General purpose BNC to BNC
Model 7035-MTC-2: 2m (6.6 ft) mass terminated cable (G-58C).
Side Text
cable assembly for connection to 7035. The 7051-2 0.6m (2 ft)
Cables
cable has 45 pairs with outer shield. The cable is 7051-5 1.5m (5 ft)
terminated at each end with 96-pin female DIN 7051-10 3m (10 ft) Model 7076-CMTC: High isolation 3m (10 ft)
connectors with strain relief. For use with: 776, 2015, 2016, 3321, 3322, cable assembly with mass terminated connector
For use with: 7035 3390, 7062, 7063, 7711, some instrument on each end. For bank connections on the 7075
external trigger I/O lines or column connections on the 7076. A separate
guard shields each HI signal path. The number
of cables required depends on how the 7075 or
7076 is configured.
For use with: 7075 Bank
Model 7036-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7036. The
cable has 45 pairs with outer shield. The cable is
terminated at each end with 96-pin female DIN Model 7076-RMTC: High isolation 3m (10 ft)
connectors with strain relief. Model 7075-MTC: 3m (10 ft) cable assembly cable assembly with mass terminated connector
For use with: 7036 with mass terminated connector on each end. on each end. For use as row connections on the
For use as row or column connections on the 7075 and 7076. A separate guard shields each
7076, and for bank or column connections HI signal path. The number of cable assemblies
on the 7075. The number of cable assemblies required depends on how the 7075 or 7076 is
required depends on how the 7075 or 7076 is configured.
configured. For use with: 7075 Row
For use with: 7075 Bank/Column
ACCESSORIES
1.888.KEITHLEY (U.S. only)
w w w.keithley.com A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
3 Slot Triax
Model 7078-TRX-6IN 3-slot Triax Cable: 0.15m
(6 inch), 3-slot, low-noise, guarded triax cable that
Side Text
minimizes leakage current and input capacitance
Cables
Model 7078-CSHP is a set of eight 3m (10 Model 7078-MTC-5: 1.5m (5 ft) mass terminated when used with the Model 6430 Remote PreAmp
ft) cables and four BNC-to-triax adapters for cable for connection to column inputs (7071 and (lower noise than 1 foot or longer versions).
connecting between the Model 7072 8◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
