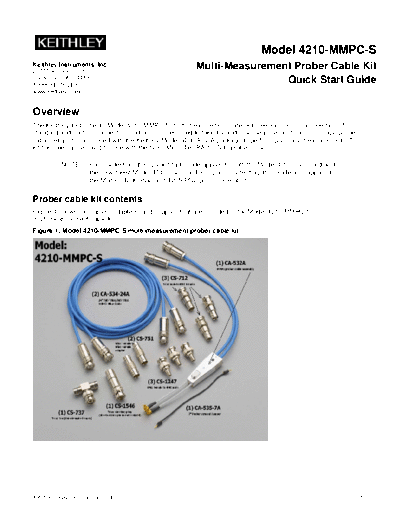

Image preview - the first page of the document



>> Download PA-1000 (B - Jan 2010)(4200-MMPC-S) documenatation <<

Text preview - extract from the document

                                                                             Model 4210-MMPC-S
Keithley Instruments, Inc.
28775 Aurora Road
                                                       Multi-Measurement Prober Cable Kit
Cleveland, Ohio 44139
1-888-KEITHLEY
                                                                       Quick Start Guide
www.keithley.com


Overview
The Keithley Instruments Model 4210-MMPC-S multi-measurement cable kit (see Figure 1) is a collection of
standard and custom connectors and accessories used to take I-V and C-V measurements using a single prober
cable setup. It is also used with the Keithley Model 4200-PIV-A package to perform pulse I-V measurements. This
kit has been assembled for use with the Suss Micro Tec PA200/300 prober series.

         NOTE      For C-V testing, this Quick Start Guide applies to both the Model 4200-CVU card and
                   the new 1 kHz Model 4210-CVU card. For pulse I-V testing, this guide also applies to
                   the Models 4200-PG2 and 4205-PG2 pulse generators.


Prober cable kit contents
Figure 1 shows the cables, adapters, and supplies that are included in the Model 4210-MMPC-S
multi-measurement cable kit.
Figure 1: Model 4210-MMPC-S multi-measurement prober cable kit




PA-1000 Rev. B / January 2010                                                                                 1
Model 4210 MMPC-S Quick Start Guide


Quick Start Guide topics
The guide contains information about the installation and use of this cable kit:
