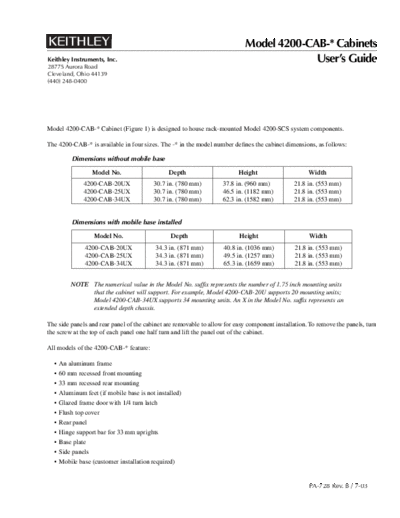

                                                                             Model 4200-CAB-* Cabinets
Keithley Instruments, Inc.                                                                User's Guide
28775 Aurora Road
Cleveland, Ohio 44139
(440) 248-0400
www.keithley.com




Model 4200-CAB-* Cabinet (Figure 1) is designed to house rack-mounted Model 4200-SCS system components.

The 4200-CAB-* is available in four sizes. The -* in the model number defines the cabinet dimensions, as follows:

          Dimensions without mobile base

                  Model No.                     Depth                     Height                     Width
               4200-CAB-20UX              30.7 in. (780 mm)         37.8 in. (960 mm)0         21.8 in. (553 mm)
               4200-CAB-25UX              30.7 in. (780 mm)         46.5 in. (1182 mm)         21.8 in. (553 mm)
               4200-CAB-34UX              30.7 in. (780 mm)         62.3 in. (1582 mm)         21.8 in. (553 mm)


          Dimensions with mobile base installed

                   Model No.                    Depth                     Height                     Width
                4200-CAB-20UX              34.3 in. (871 mm)        40.8 in. (1036 mm)          21.8 in. (553 mm)
                4200-CAB-25UX              34.3 in. (871 mm)        49.5 in. (1257 mm)          21.8 in. (553 mm)
                4200-CAB-34UX              34.3 in. (871 mm)        65.3 in. (1659 mm)          21.8 in. (553 mm)


          NOTE The numerical value in the Model No. suffix represents the number of 1.75 inch mounting units
               that the cabinet will support. For example, Model 4200-CAB-20U supports 20 mounting units;
               Model 4200-CAB-34UX supports 34 mounting units. An X in the Model No. suffix represents an
               extended depth chassis.

The side panels and rear panel of the cabinet are removable to allow for easy component installation. To remove the panels, turn
the screw at the top of each panel one half turn and lift the panel out of the cabinet.
