                                                         Model 4200-CVU-PROBER-KIT
Keithley Instruments, Inc.
28775 Aurora Road
                                                                                             Packing List
Cleveland, Ohio 44139
1-888-KEITHLEY
www.keithley.com



Model 4200-CVU-PROBER-KIT
    The Keithley Instruments Model 4200-CVU-PROBER-KIT is a collection of commonly used accessories used
    to take standard capacitance-voltage measurements on a variety of probers. This kit includes 3m cables to
    complement the 1.5m cables that come standard with the Model 4200-CVU and Model 4200-CVU upgrade
    products. Please refer to the individual packing lists for the 7078-TRX-GND and 7078-TRX-BNC for further
    information and specifications on these individual components.

    Figure 1

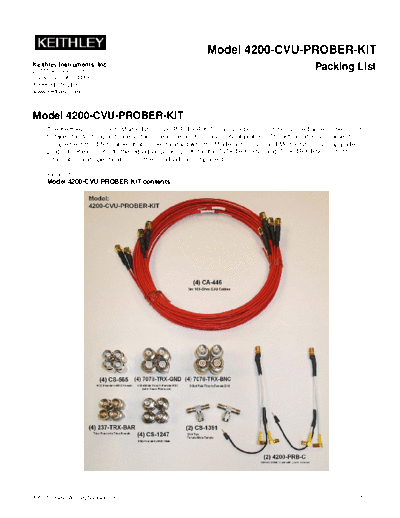

    Model 4200-CVU-PROBER-KIT contents




PA-950 Rev. A / September 2007                                                                              1
