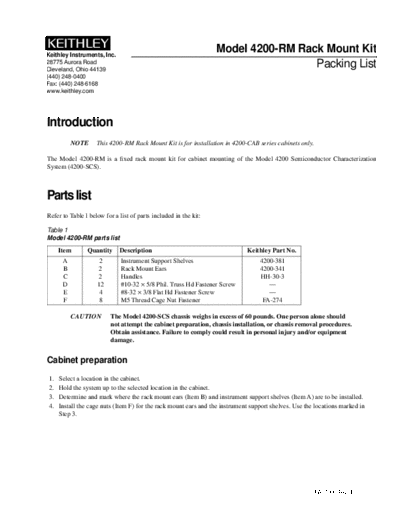

Image preview - the first page of the document



>> Download pa709b(Model4200RM) documenatation <<

Text preview - extract from the document

Keithley Instruments, Inc.
                                                                  Model 4200-RM Rack Mount Kit
28775 Aurora Road
Cleveland, Ohio 44139
                                                                                   Packing List
(440) 248-0400
Fax: (440) 248-6168
www.keithley.com




Introduction
           NOTE     This 4200-RM Rack Mount Kit is for installation in 4200-CAB series cabinets only.

The Model 4200-RM is a fixed rack mount kit for cabinet mounting of the Model 4200 Semiconductor Characterization
System (4200-SCS).



Parts list
Refer to Table l below for a list of parts included in the kit:

Table 1
Model 4200-RM parts list
      Item       Quantity    Description                                      Keithley Part No.
       A             2        Instrument Support Shelves                           4200-381
       B             2        Rack Mount Ears                                      4200-341
       C             2        Handles                                              HH-30-3
       D            12        #10-32
