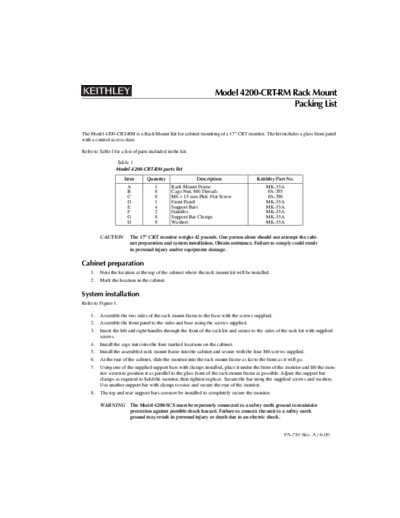

Image preview - the first page of the document



>> Download pa710a-Model_4200-CRT-RM documenatation <<

Text preview - extract from the document

                                                                   Model 4200-CRT-RM Rack Mount
                                                                                     Packing List


The Model 4200-CRT-RM is a Rack Mount Kit for cabinet mounting of a 17" CRT monitor. The kit includes a glass front panel
with a control access door.

Refer to Table l for a list of parts included in the kit:

                  Table 1
                  Model 4200-CRT-RM parts list
                      Item         Quantity                 Description                  Keithley Part No.
                        A             1         Rack Mount Frame                             MK-35A
                        B             8         Cage Nut, M6 Threads                          FA-295
                        C             8         M6
