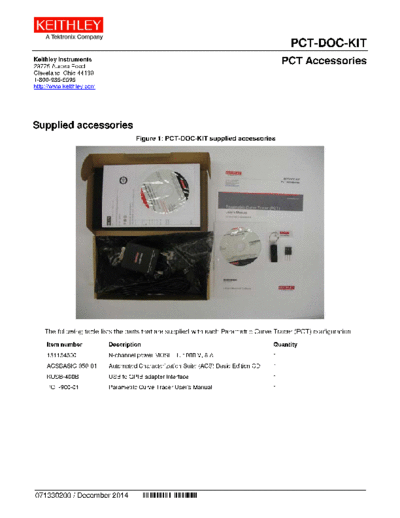

Image preview - the first page of the document
>> Download 071330200 (Dec 2014)(PCT-DOC-KIT) documenatation <<
Text preview - extract from the document
PCT-DOC-KIT
Keithley Instruments
28775 Aurora Road
PCT Accessories
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Supplied accessories
Figure 1: PCT-DOC-KIT supplied accessories
The following table lists the parts that are supplied with each Parametric Curve Tracer (PCT) configuration.
Item number Description Quantity
151154500 N-channel power MOSFET, 1000 V, 8 A 1
ACSBASIC-950-01 Automated Characterization Suite (ACS) Basic Edition CD 1
KUSB-488B USB to GPIB adapter interface 1
PCT-900-01 Parametric Curve Tracer User's Manual 1
071330200 / December 2014 *P071330200*
