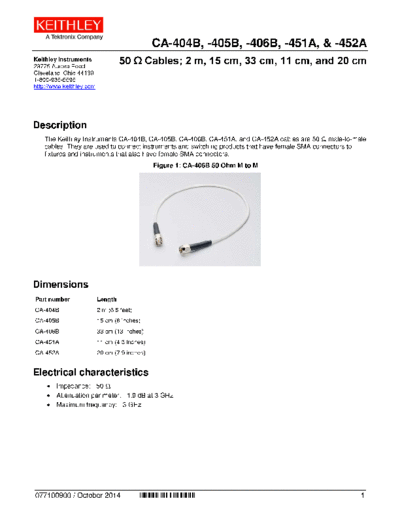

Image preview - the first page of the document
>> Download 077100900 (Oct 2014)(CA-404B_252C -405B_252C -406B_252C -451A_252C -452A) documenatation <<
Text preview - extract from the document
CA-404B, -405B, -406B, -451A, & -452A
Keithley Instruments
28775 Aurora Road
50 Cables; 2 m, 15 cm, 33 cm, 11 cm, and 20 cm
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Keithley Instruments CA-404B, CA-405B, CA-406B, CA-451A, and CA-452A cables are 50 male-to-male
cables. They are used to connect instruments and switching products that have female SMA connectors to
fixtures and instruments that also have female SMA connectors.
Figure 1: CA-406B 50 Ohm M to M
Dimensions
Part number Length
CA-404B 2 m (6.5 feet)
CA-405B 15 cm (6 inches)
CA-406B 33 cm (13 inches)
CA-451A 11 cm (4.3 inches)
CA-452A 20 cm (7.9 inches)
Electrical characteristics
