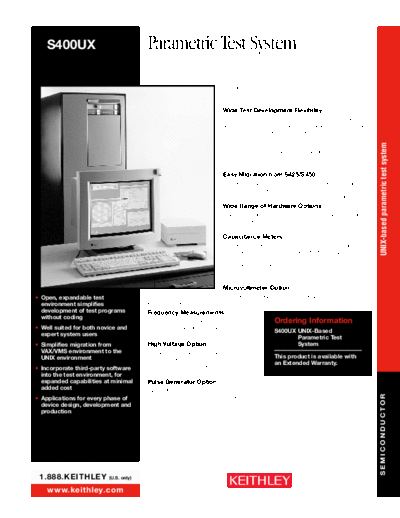

Image preview - the first page of the document
>> Download S400UX_DS documenatation <<
Text preview - extract from the document
S400UX Parametric Test System
The S400UX is an integrated package of hardware and software tools,
offering semiconductor fabs the industry's most complete solution for
automated parametric testing.
Wide Test Development Flexibility
There's no need to learn a high-level programming language--even
novice users can create executable test sequences in minutes without
ever writing a line of code. However, the software also includes tools
that make it equally suitable for experienced test programmers, offer-
UNIX-based parametric test system
ing wide flexibility for those who prefer to write their own routines or
modify those included in the package. The S400UX relies on the
Keithley Test Environment (KTE) software interface for test develop-
ment and execution.
Easy Migration from S425/S450
The S400UX is hardware compatible with its predecessors, the S425
and S450 systems, and offers a cost-effective software migration path
for facilities planning to upgrade to a UNIX test environment.
Wide Range of Hardware Options
In addition to the standard source/measure instrumentation, the
S400UX can be customized with a variety of options to tailor it for par-
ticular applications.
Capacitance Meters
The S400UX can be equipped with high speed, single-frequency
capacitance meters operating at either 100kHz or 1MHz. These units
can also measure conductance to correct for series resistance in
capacitance measurements. If multi-frequency capacitance measure-
ments are required, an Agilent 4284 LCR meter can be integrated into
the system.
Microvoltmeter Option
