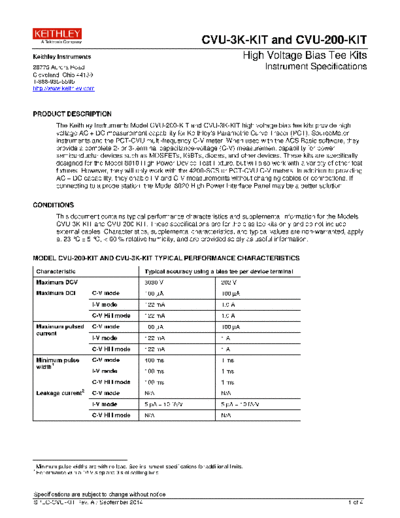

Image preview - the first page of the document
SPEC-CVU-KIT (A- Sept 2014)_001


>> Download SPEC-CVU-KIT (A- Sept 2014)_001 documenatation <<

Text preview - extract from the document
                                                                            CVU-3K-KIT and CVU-200-KIT
Keithley Instruments                                                                          High Voltage Bias Tee Kits
28775 Aurora Road                                                                                     Instrument Specifications
Cleveland, Ohio 44139
1-888-935-5595
http://www.keithley.com



PRODUCT DESCRIPTION
            The Keithley Instruments Model CVU-200-KIT and CVU-3K-KIT high voltage bias tee kits provide high
            voltage AC + DC measurement capability for Keithley's Parametric Curve Tracer (PCT), SourceMeter
            instruments and the PCT-CVU multi-frequency C-V meter. When used with the ACS Basic software, they
            provide a complete 2- or 3-terminal capacitance-voltage (C-V) measurement capability for power
            semiconductor devices such as MOSFETs, IGBTs, diodes, and other devices. These kits are specifically
            designed for the Model 8010 High Power Device Test Fixture, but will also work with a variety of other test
            fixtures. However, they will only work with the 4200-SCS or PCT-CVU C-V meters. In addition to providing
            AC + DC capability, they enable I-V and C-V measurements without changing cables or connections. If
            connecting to a probe station, the Model 8020 High Power Interface Panel may be a better solution.

CONDITIONS
            This document contains typical performance characteristics and supplemental information for the Models
            CVU-3K-KIT and CVU-200-KIT. These specifications are for the bias tee kits only and do not include
            external cables. Characteristics, supplemental characteristics, and typical values are non-warranted, apply
            at 23
