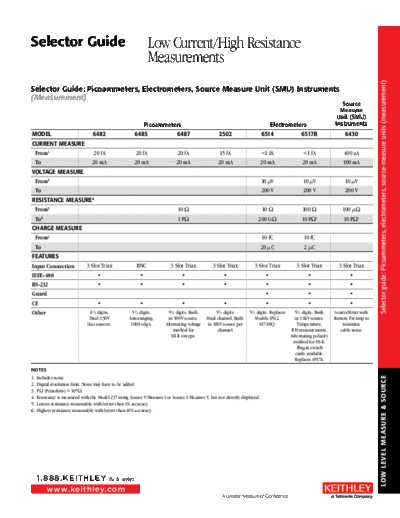

Image preview - the first page of the document
Selector_LoI-HiR


>> Download Selector_LoI-HiR documenatation <<

Text preview - extract from the document
Selector Guide                                                  Low Current/High Resistance
                                                                Measurements




                                                                                                                                                                                     Selector guide: Picoammeters, electrometers, source-measure units (measurement)
Selector Guide: Picoammeters, Electrometers, Source Measure Unit (SMU) Instruments
(Measurement)
                                                                                                                                                                     Source
                                                                                                                                                                    Measure
                                                                                                                                                                   Unit (SMU)
                                                              Picoammeters                                                        Electrometers                   Instruments
MODEL                             6482                  6485                  6487                  2502                     6514               6517B                  6430
CURRENT MEASURE
 From1                            20 fA                 20 fA                 20 fA                  15 fA                   <1 fA               <1 fA                400 aA
     To                           20 mA                 20 mA                 20 mA                 20 mA                    20 mA               20 mA                100 mA
VOLTAGE MEASURE
     From2                                                                                                                   10
