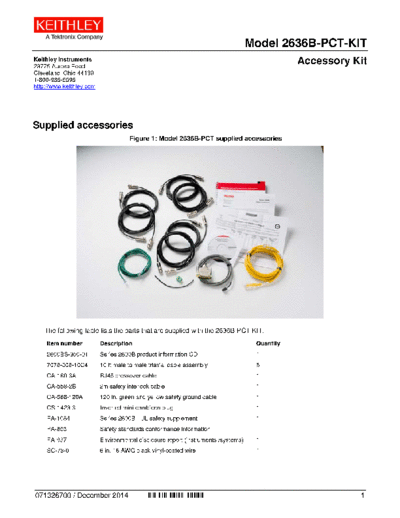

Image preview - the first page of the document
>> Download 071326700 (Dec 2014)(2636B-PCT-KIT) documenatation <<
Text preview - extract from the document
Model 2636B-PCT-KIT
Keithley Instruments
28775 Aurora Road
Accessory Kit
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Supplied accessories
Figure 1: Model 2636B-PCT supplied accessories
The following table lists the parts that are supplied with the 2636B-PCT-KIT.
Item number Description Quantity
2600BS-950-01 Series 2600B product information CD 1
7078-308-10C4 10 ft male to male triaxial cable assembly 6
CA-180-3A RJ45 crossover cable 1
CA-558-2B 2m safety interlock cable 1
CA-568-120A 120 in. green and yellow safety ground cable 1
CS-1423-3 Inverted mini combicon plug 1
PA-1084 Series 2600B UL safety supplement 1
PA-853 Safety standards conformance information 1
PA-937 Environmental disclosure report (instruments /systems) 1
SC-73-0 6 in. 16 AWG black vinyl-coated wire 1
071326700 / December 2014 *P071326700* 1
