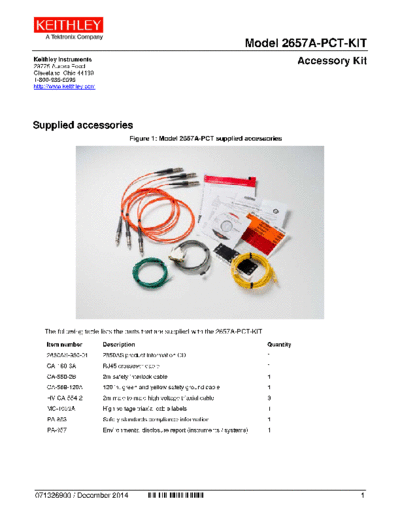

Image preview - the first page of the document
>> Download 071326900 (Dec 2014)(2657A-PCT-KIT) documenatation <<
Text preview - extract from the document
Model 2657A-PCT-KIT
Keithley Instruments
28775 Aurora Road
Accessory Kit
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Supplied accessories
Figure 1: Model 2657A-PCT supplied accessories
The following table lists the parts that are supplied with the 2657A-PCT-KIT.
Item number Description Quantity
2650AS-950-01 2650AS product information CD 1
CA-180-3A RJ45 crossover cable 1
CA-558-2B 2m safety interlock cable 1
CA-568-120A 120 in. green and yellow safety ground cable 1
HV-CA-554-2 2m male to male high voltage triaxial cable 3
MC-1059A High voltage triaxial cable labels 1
PA-853 Safety standards compliance information 1
PA-957 Environmental disclosure report (instruments / systems) 1
071326900 / December 2014 *P071326900* 1
