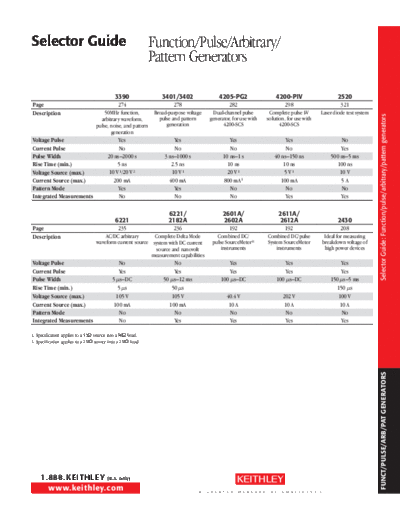

Selector Guide Function/Pulse/Arbitrary/
Pattern Generators
3390 3401/3402 4205-PG2 4200-PIV 2520
Page 274 278 282 298 321
Description 50MHz function, Broad-purpose voltage Dual-channel pulse Complete pulse I-V Laser diode test system
Selector Guide: Function/pulse/arbitrary/pattern generators
arbitrary waveform, pulse and pattern generator, for use with solution, for use with
pulse, noise, and pattern generation 4200-SCS 4200-SCS
generation
Voltage Pulse Yes Yes Yes Yes No
Current Pulse No No No No Yes
