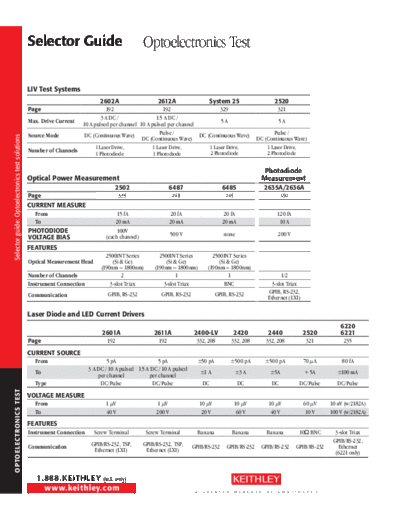

Image preview - the first page of the document
>> Download Opto_SelctrGuide documenatation <<
Text preview - extract from the document
Selector Guide Optoelectronics Test
LIV Test Systems
2602A 2612A System 25 2520
Page 192 192 329 321
3 A DC / 1.5 A DC /
Max. Drive Current 5A 5A
10 A pulsed per channel 10 A pulsed per channel
Source Mode Pulse /
DC (Continuous Wave) DC (Continuous Wave) DC (Continuous Wave) Pulse /
Selector guide: Optoelectronics test solutions
DC (Continuous Wave)
1 Laser Drive, 1 Laser Drive, 1 Laser Drive, 1 Laser Drive,
Number of Channels 2 Photodiode 2 Photodiode
1 Photodiode 1 Photodiode
Photodiode
Optical Power Measurement Measurement
2502 6487 6485 2635A/2636A
Side Text
Page 335 248 245 192
CURRENT MEASURE
From 15 fA 20 fA 20 fA 120 fA
To 20 mA 20 mA 20 mA 10 A
PHOTODIODE 100V 500 V none 200 V
VOLTAGE BIAS (each channel)
FEATURES
2500INT Series 2500INT Series 2500INT Series
Optical Measurement Head (Si & Ge) (Si & Ge) (Si & Ge)
