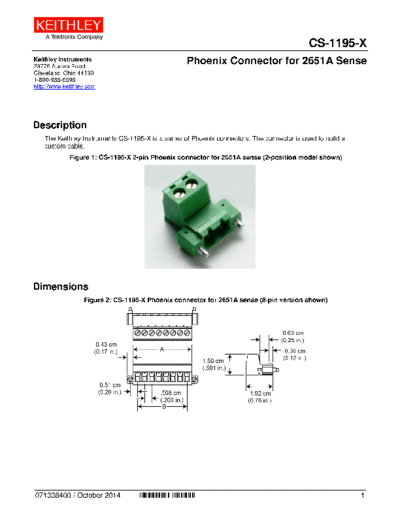

CS-1195-X
Keithley Instruments
28775 Aurora Road
Phoenix Connector for 2651A Sense
Cleveland, Ohio 44139
1-800-935-5595
http://www.keithley.com
Description
The Keithley Instruments CS-1195-X is a series of Phoenix connectors. The connector is used to build a
custom cable.
Figure 1: CS-1195-X 2-pin Phoenix connector for 2651A sense (2-position model shown)
Dimensions
Figure 2: CS-1195-X Phoenix connector for 2651A sense (8-pin version shown)
071338400 / October 2014 *P071338400* 1
CS-1195-X
Keithley part number Number of positions A B
CS-1195-2 2 1.17 cm (0.46 in.) 0.51 cm (0.20 in.)
CS-1195-8 8 4.21 cm (1.66 in.) 3.56 cm (1.40 in.)
Electrical characteristics
