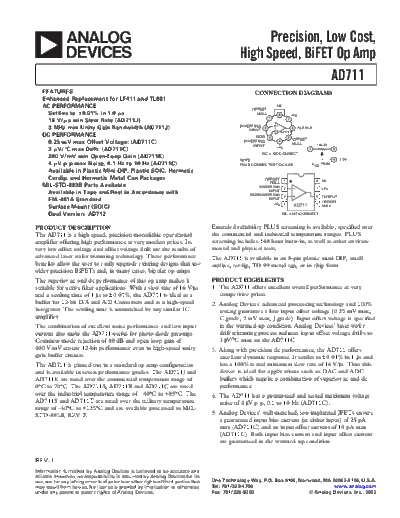

Image preview - the first page of the document



>> Download AD711 documenatation <<

Text preview - extract from the document

a                                                                                                  Precision, Low Cost,
                                                                                             High Speed, BiFET Op Amp
                                                                                                               AD711
   FEATURES                                                                                        CONNECTION DIAGRAMS
   Enhanced Replacement for LF411 and TL081
   AC PERFORMANCE                                                                                 OFFSET
                                                                                                               NC

     Settles to 0.01% in 1.0 s                                                                      NULL                +VS
     16 V/ s min Slew Rate (AD711J)
                                                                                             INVERTING
     3 MHz min Unity Gain Bandwidth (AD711J)                                                     INPUT
                                                                                                                          OUTPUT
                                                                                                                AD711
   DC PERFORMANCE                                                                                   NON
                                                                                              INVERTING                 OFFSET
     0.25 mV max Offset Voltage: (AD711C)                                                         INPUT                 NULL       10k
