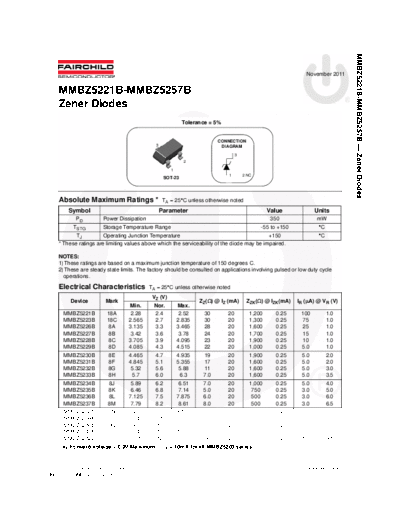

Image preview - the first page of the document
MMBZ5237B


>> Download MMBZ5237B documenatation <<

Text preview - extract from the document
                                                                                                                                               MMBZ5221B-MMBZ5257B -- Zener Diodes
                                                                                                                      November 2011


     MMBZ5221B-MMBZ5257B
     Zener Diodes
                                                                Tolerance = 5%


                                                                                CONNECTION
                                                  3                              DIAGRAM
                                                                                        3
                                                                2

                                                          1
                                                                                    1       2 NC
                                                       SOT-23




     Absolute Maximum Ratings *                        TA = 25
