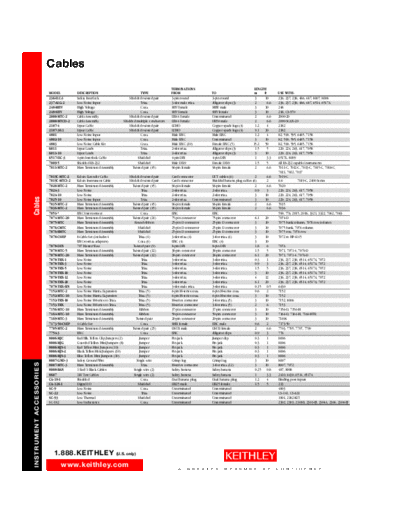

Image preview - the first page of the document
>> Download 4672-2,0 documenatation <<
Text preview - extract from the document
Cables
TERMINATIONS LENGTH
MODEL DESCRIPTION TYPE FROM TO m ft USE WITH:
236-ILC-3 Safety Interlock Shielded twisted pair 3-pin round 3-pin round 3 10 236, 237, 238, 486, 487, 8007, 8008
237-ALG-2 Low Noise Input Triax 3-slot male triax Alligator clips (3) 2 6.6 236, 237, 238, 486, 487, 6514, 6517A
248-MHV High Voltage Coax SHV female MHV male 3 10 248
248-SHV High Voltage Coax SHV female SHV female 3 10 248, CS-970
2000-MTC-2 Cable Assembly Shielded twisted pair DB44 female Unterminated 2 6.6 2000-20
2000-MTCD-2 Cable Assembly Shielded multiple conductors DB44 female DB50 male 2 6.6 2000-SCAN-20
2107-4 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 1.2 4 2182
2107-30.1 Input Cable Shielded twisted pair LEMO Copper spade lugs (4) 9.1 30 2182
4801 Low Noise Input Coax Male BNC Male BNC 1.2 4 82, 590, 595, 6485, 7158
4802-10 Low Noise Input Coax Male BNC Unterminated 3 10 82, 590, 595, 6485, 7158
4803 Low Noise Cable Kit Coax Male BNC (10) Female BNC (5) 15.2 50 82, 590, 595, 6485, 7158
6011 Input Leads Triax 2-slot triax Alligator clips (3) 1.5 5 220, 224, 263, 617, 7058
6011-10 Input Leads Triax 2-slot triax Alligator clips (3) 3 10 220, 224, 263, 617, 7058
6517-ILC-3 4-pin Interlock Cable Shielded 4-pin DIN 4-pin DIN 1 3.3 6517A, 8009
7009-5 Shielded RS-232 Shielded Male DB-9 Female DB-9 1.5 5 All RS-232 capable instruments
7011-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7011-C, 7012-C, 7013-C, 7015-C, 7018-C,
7021, 7022, 7037
7019C-MTC-2 Kelvin Extender Cable Shielded twisted pair Card connector DUT cables (6) 2 6.6 7019-C
7019C-MTCI-2 Kelvin Instrument Cable Shielded twisted pair Card connector Shielded banana plug cables (6) 2 6.6 7019-C, 2400 Series
7020-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7020
7024-3 Low Noise Triax 2-slot triax 2-slot triax 0.9 3 220, 224, 263, 617, 7058
7024-10 Low Noise Triax 2-slot triax 2-slot triax 3 10 220, 224, 263, 617, 7058
Cables
7025-10 Low Noise Input Triax 2-slot triax Unterminated 3 10 220, 224, 263, 617, 7058
7035-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7035
7036-MTC-2 Mass Terminated Assembly Twisted pair (45) 96-pin female 96-pin female 2 6.6 7036
7051-* BNC Interconnect Coax BNC BNC 590, 776, 2015, 2016, 3321, 3322, 7062, 7063
7074-MTC-20 Mass Terminated Assembly Twisted pair (24) 75-pin connector 75-pin connector 6.1 20 7074-D
7075-MTC Mass Terminated Assembly Round ribbon 25-pin D connector 25-pin D connector 3 10 7075 bank/column, 7076 row/column
7076-CMTC Mass Terminated Assembly Shielded 25-pin D connector 25-pin D connector 3 10 7075 bank, 7076 column
7076-RMTC Mass Terminated Assembly Shielded 25-pin D connector 25-pin D connector 3 10 7075 row, 7076 row
7078-CSHP 8-Cable Set (includes 4 Triax (4) 3-slot triax (4) 3-slot triax (4) 3 10 7072 to HP-4145
BNC-to-triax adapters) Coax (4) BNC (4) BNC (4) 3 10
7078-DIN 707 Master/Slave Twisted pair (9) 8-pin DIN 8-pin DIN 1.8 6 707A
7078-MTC-5 Mass Terminated Assembly Twisted pair (12) 38-pin connector 38-pin connector 1.5 5 7071, 7071-4, 7074-D
7078-MTC-20 Mass Terminated Assembly Twisted pair (12) 38-pin connector 38-pin connector 6.1 20 7071, 7071-4, 7074-D
7078-TRX-1 Low Noise Triax 3-slot triax 3-slot triax 0.3 1 236, 237, 238, 6514, 6517A, 7072
7078-TRX-3 Low Noise Triax 3-slot triax 3-slot triax 0.9 3 236, 237, 238, 6514, 6517A, 7072
7078-TRX-5 Low Noise Triax 3-slot triax 3-slot triax 1.5 5 236, 237, 238, 6514, 6517A, 7072
7078-TRX-10 Low Noise Triax 3-slot triax 3-slot triax 3 10 236, 237, 238, 6514, 6517A, 7072
7078-TRX-12 Low Noise Triax 3-slot triax 3-slot triax 4 12 236, 237, 238, 6514, 6517A, 7072
7078-TRX-20 Low Noise Triax 3-slot triax 3-slot triax 6.1 20 236, 237, 238, 6514, 6517A, 7072
7078-TRX-6IN Low Noise Triax 3-slot male triax 3-slot triax 0.15 0.5 6430
7152-MTC-2 Low Noise Matrix Expansion Triax (5) 6-pin M-series coax 6-pin M-series coax 0.6 2 7152
7152-MTC-10 Low Noise Matrix Expansion Triax (5) 6-pin M-series coax 6-pin M-series coax 3 10 7152
7152-TRX-10 Low Noise M-Series to Triax Triax (5) M-series connector 3-slot triax (5) 3 10 7152, 8006
7153-TRX Low Noise M-Series to Triax Triax (5) M-series connector 3-slot triax (5) 2 6 7153
7156-MTC-10 Mass Terminated Assembly Ribbon 37-pin connector 37-pin connector 3 10 7156-D, 7156-M
7164-MTC-10 Mass Terminated Assembly Ribbon 50-pin connector 50-pin connector 3 10 7164-D, 7164-M, 7164-MTR
7169-MTC-3 Mass Terminated Assembly Twisted pair 20-pin connector 20-pin connector 3 10 7169A
7173-50-CSEP 4-Cable Set Coax SMB female BNC male 0.6 2 7173-50
7705-MTC-2 Mass Terminated Assembly Twisted pair (25) DSUB male DSUB female 2 6.6 7703, 7705, 7707, 7709
7754-3 BNC Coax BNC Alligator clips 0.9 3 776
8006-MJC Red/Blk. Teflon Clip Jumpers (2) Jumper Pin jack Jumper clip 0.3 1 8006
8006-MJG Guarded Teflon Mini Jumpers (8) Jumper Pin jack Pin jack 0.3 1 8006
8006-MJS-1 Red Teflon Mini Jumpers (10) Jumper Pin jack Pin jack 0.3 1 8006
8006-MJS-2 Black Teflon Mini Jumpers (10) Jumper Pin jack Pin jack 0.3 1 8006
8006-MJS-3 Blue Teflon Mini Jumpers (10) Jumper Pin jack Pin jack 0.3 1 8006
8007-GND-3 Safety Ground Wire Single wire Crimp lug Crimp lug 3 10 8007
INSTRUMENT ACCESSORIES
8007-MTC-3 Mass Terminated Assembly Triax M-series connector 3-slot triax (12) 3 10 8007, 7072
8008-BAN 1 Red/1 Black Cables Single wire (2) Safety banana Safety banana 0.25 0.8 487, 8008
8607 1kV Test Cables Single wire (2) Safety banana Safety banana 1 3.3 2410, 6430, 6514, 6517A
CA-18-1 Shielded Coax Dual banana plug Dual banana plug 1.2 4 Binding post inputs
CA-126-1 Digital I/O Shielded DB25 male DB25 female 1.5 5 213
SC-9 Low Noise Coax Unterminated Unterminated 4803
SC-22 Low Noise Triax Unterminated Unterminated CS-141, CS-631
SC-93 Low Thermal Shielded Unterminated Unterminated 1801, 2182-KIT
SC-182 Low Inductance Coax Unterminated Unterminated 2302, 2303, 2303B, 2303-PJ, 2304A, 2306, 2306-PJ
1.888.KEITHLEY (U.S. only)
www.keithley.com
A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
Model 248-SHV: 3m (10 ft) of RG-8A/U coax
Model 236-ILC-3 Safety Interlock Cable: cable terminated with a SHV female connector on Model 2107-* Low-Thermal Input Cables with
Designed to connect the lid interlock circuit of the both ends. Maximum operating voltage (rms) is Spade Lugs: An input cable for the Model 2182
Model 8007 and 8008 test fixtures to the interlock 5,000V. Nanovoltmeter. Terminated with a LEMO connec-
circuit of the Models 236, 237, and 238 SMUs and
For use with: 248 and CS-970 tor on one end and four copper spade lugs on the
486 and 487 Picoammeters.
other.
For use with: 236, 237, 238, 486, 487, 8007, 2107-4 1.2m (4 ft) length
8008 2107-30 9.1m (30 ft) length
Cables
For use with: 2182
Model 2000-MTC-2 Cable Assembly: 2-meter
cable with a 44-pin connector on one end that is
designed to mate with the 2000-20 scanner card.
Model 237-ALG-2: 2m (6.6 ft) of low noise triax The other end is unterminated for direct connec- Model 4801 Input Cable: Low noise coax cable,
cable (SC-22) terminated with a 3-slot male triax tion to measurement fixtures or devices. 1.2m (48 in) in length, with male BNC connectors
connector on one end and 3 alligator clips on the
For use with: 2000-20 on each end.
other.
For use with: 82, 590, 595, 6485, 7158
For use with: 236, 237, 238, 486, 487, 6514,
6517A
Model 4802-10: 3m (10 ft) of low noise coax INSTRUMENT ACCESSORIES
Model 248-MHV: 3m (10 ft) of RG-8A/U coax cable with male BNC connector at one end and
cable terminated with a SHV female connector on unterminated at the other.
one end and a MHV male connector on the other. For use with: 82, 590, 595, 6485, 7158
Model 2000-MTCD-2 Cable Assembly: 2-meter
Maximum operating voltage (rms) is 5,000V
cable with a 44-pin connector on one end that is
For use with: 248 designed to mate with the 2000-SCAN-20 scanner
card. The other end is equipped with a 50-pin D
subminiature connector, designed to mate with 50-
pin female D connectors.
For use with: 2000-SCAN-20
1.888.KEITHLEY (U.S. only)
www.keithley.com
A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
Model 7019C-MTCI-2 6-Wire Kelvin Extender
and Instrument Cable: Used with Model 7019-C
Model 7009-5 Shielded RS-232 Cable: 1.5m (5
6-Wire Ohms Matrix Card and a SourceMeter
ft) RS-232 cable with a male DB-9 connector at one
instrument. The SourceMeter cables are 0.6m (2
end and a female DB-9 connector on the other
ft) long and the DUT cables are 2m (6.6 ft) long.
Model 4803 Low Noise Cable Kit: Includes end. Wired as a straight through, not as a null
The cable set is used in a basic system to test a
15m (50 ft) of low noise coax cable, 10 male BNC modem cable.
Cables
resistor network.
connectors, and 5 female BNC chassis-mount con- For use with: All RS-232 capable instruments
nectors. For use with: 7019-C, 2400 Series SourceMeter
Instruments
For use with: 82, 485, 595, 6485, 7158
Model 7011-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7011-C and other Model 7020-MTC-2: 2m (6.6 ft) mass terminated
switching cards. The cable has 45 pairs with outer cable assembly for connection to 7020. The cable
Model 6011 2-Slot Triax Cable: 1.5m (5 ft) of shield. The cable is terminated at each end with has 45 pairs with outer shield. The cable is termi-
triax cable (SC-22) terminated with a 2-slot triax 96-pin female DIN connectors with strain relief. nated at each end with 96-pin female DIN connec-
plug on one end and three alligator clips on the For use with: 7011-C, 7012-C, 7013-C, 7015-C, tors with strain relief.
other. Also available in 3m (10 ft) length (Model 7018-C, 7021, 7022, 7037
6011-10). For use with: 7020
For use with: 220, 224, 263, 617, 7058
INSTRUMENT ACCESSORIES
2 Slot Triax
Model 7024-* 2-Slot Triax Cable: 0.9m (3 ft)
Model 6517-ILC-3 Interlock Cable: Designed low noise triax cable (SC-22) with 2-slot male triax
to connect the Interlock of the 6517A with the Model 7019C-MTC-2 Kelvin Extender Cable:
connectors on each end.
8009 test fixture. Configuring the 6517A with the An extension cable set for the Model 7019-C 6-Wire
7024-3 0.9m (3 ft)
8009 test fixture results in all the electrode con- Ohms Matrix Card. Provides cabling to the DUT
7024-10 3m (10 ft)
stants already being programmed into the unit. and is used for matrix expansion.
For use with: 220, 224, 263, 617, 7058
For use with: 6517A Electrometer, 8009 For use with: 7019-C
1.888.KEITHLEY (U.S. only)
www.keithley.com
A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
for bank or column connections on the 7075. The
number of cable assemblies required depends on
how the 7075 or 7076 is configured.
For use with: 7075 Bank/Column,
7076 Row/Column
2 Slot Triax
Model 7025-10 2-Slot Triax Cable: 3m (10 ft)
low noise triax input cable (SC-22) terminated on
one end with 2-slot male triax connector. Model 7051-*: General purpose BNC to BNC cable
(G-58C).
For use with: 220, 224, 263, 617, 7058 7051-2 0.6m (2 ft)
7051-5 1.5 (5 ft)
7051-10 3m (10 ft)
For use with: 590, 776, 2015, 2016, 3321, 3322,
7062, 7063, some instrument external trigger
I/O lines
Cables
Model 7076-CMTC: High isolation 3m (10 ft)
cable assembly with mass terminated connector on
each end. For bank connections on the 7075 or
column connections on the 7076. A separate guard
shields each HI signal path. The number of cables
required depends on how the 7075 or 7076 is con-
figured.
For use with: 7075 Bank, 7076 Column
Model 7035-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7035. The cable
has 45 pairs with outer shield. The cable is termi-
nated at each end with 96-pin female DIN connec- Model 7074-MTC-20: 6m (20 ft) mass terminated
tors with strain relief. cable assembly for connection to channel inputs
For use with: 7035 on the 7074-M multiplexer switching card. The
cable has 24 sets of shielded twisted pair wires for
isolation of critical circuits and noise rejection in
the system. The cable is terminated at each end in
a 75-pin connector block with strain relief. Model
7074-MTC-20 can be used as is or cut in half to
make two 10 ft cables for termination in unique Model 7076-RMTC: High isolation 3m (10 ft)
device-under-test fixtures and interfaces. cable assembly with mass terminated connector on
For use with: 7074-D each end. For use as row connections on the 7075
and 7076. A separate guard shields each HI signal
path. The number of cable assemblies required
depends on how the 7075 or 7076 is configured.
For use with: 7075 Row, 7076 Row
Model 7036-MTC-2: 2m (6.6 ft) mass terminated
cable assembly for connection to 7036. The cable
has 45 pairs with outer shield. The cable is termi- INSTRUMENT ACCESSORIES
nated at each end with 96-pin female DIN connec-
tors with strain relief.
For use with: 7036
Model 7075-MTC: 3m (10 ft) cable assembly with
mass terminated connector on each end. For use
as row or column connections on the 7076, and
1.888.KEITHLEY (U.S. only)
www.keithley.com
A G R E A T E R M E A S U R E O F C O N F I D E N C E
Cables
minated at each end in a 38-pin connector block for connection between the matrix and the device
with strain relief. Model 7078-MTC-20 can be under test.
used as is or cut in half to make two 10 ft cables. 7152-MTC-2 0.6m (2 ft)
For use with: 7071, 7071-4, 7074-D 7152-MTC-10 3.0m (10 ft)
For use with: 7152
3 Slot Triax
Model 7078-CSHP is a set of eight 3m (10 ft) Model 7078-TRX-* 3-Slot Triax Cables: Low
cables and four BNC-to-triax adapters for connect- noise triax cables terminated at both ends in 3-slot
ing between the Model 7072 8◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
