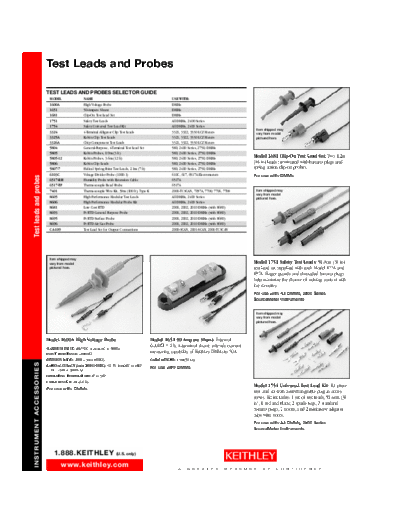

Image preview - the first page of the document
>> Download 4675-2,0 documenatation <<
Text preview - extract from the document
Test Leads and Probes
TEST LEADS AND PROBES SELECTOR GUIDE
MODEL NAME USE WITH:
1600A High Voltage Probe DMMs
1651 50-Ampere Shunt DMMs
1681 Clip-On Test Lead Set DMMs
1751 Safety Test Leads All DMMs, 2400 Series
1754 Safety Universal Test Lead Kit All DMMs, 2400 Series
Item shipped may
3324 4-Terminal Alligator Clip Test Leads 3321, 3322, 3330 LCZ Meters vary from model
3325A Kelvin Clip Test Leads 3321, 3322, 3330 LCZ Meters pictured here.
3326A Chip Component Test Leads 3321, 3322, 3330 LCZ Meters
5804 General-Purpose, 4-Terminal Test Lead Set 580, 2400 Series, 2750, DMMs
5805 Kelvin Probes, 0.9m (3 ft) 580, 2400 Series, 2750, DMMs
5805-12 Kelvin Probes, 3.6m (12 ft) 580, 2400 Series, 2750, DMMs
Model 1681 Clip-On Test Lead Set: Two 1.2m
5806 Kelvin Clip Leads 580, 2400 Series, 2750, DMMs (48 in) leads terminated with banana plugs and
5807-7 Helical Spring Point Test Leads, 2.1m (7 ft) 580, 2400 Series, 2750, DMMs spring action clip-on probes.
6103C Voltage Divider Probe (1000:1) 610C, 617, 6517A Electrometers For use with: DMMs
Test leads and probes
6517-RH Humidity Probe with Extension Cable 6517A
6517-TP Thermocouple Bead Probe 6517A
7401 Thermocouple Wire Kit, 30m (100 ft), Type K 2001-TCSCAN, 7057A, 7700, 7706, 7708 Item shipped may
vary from model
8605 High Performance Modular Test Leads All DMMs, 2400 Series pictured here.
8606 High Performance Modular Probe Kit All DMMs, 2400 Series
8681 Low Cost RTD 2001, 2002, 2010 DMMs (with 8680)
8693 Pt RTD General Purpose Probe 2001, 2002, 2010 DMMs (with 8680)
8695 Pt RTD Surface Probe 2001, 2002, 2010 DMMs (with 8680)
8696 Pt RTD Air/Gas Probe 2001, 2002, 2010 DMMs (with 8680)
CA-109 Test Lead Set for Output Connections 2000-SCAN, 2001-SCAN, 2001-TCSCAN
Item shipped may
vary from model Model 1751 Safety Test Leads: 91.4cm (36 in)
pictured here. test lead set supplied with each Model 175A and
197A. Finger guards and shrouded banana plugs
help minimize the chance of making contact with
live circuitry.
For use with: All DMMs, 2400 Series
SourceMeter Instruments
Item shipped may
vary from model
pictured here.
Model 1600A High Voltage Probe Model 1651 50 Ampere Shunt: External
MAXIMUM INPUT: 40kV DC or peak AC to 300Hz.
